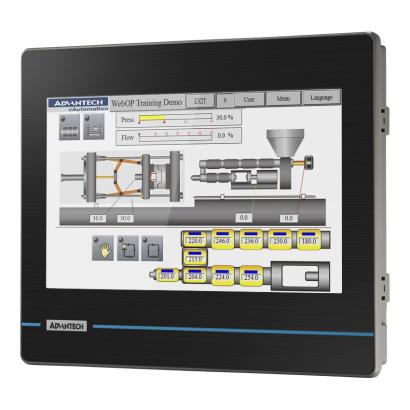

WOP-210K-NAE, Advantech, Panel
WOP-210K-NAE, Advantech, Panel
SKU: WOP-210K-NAE-ADVANTECH-PANEL
Regular price
$915.00
Regular price
Sale price
$915.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | WOP-210K-NAE |
| Product Name | 10.1" WSVGA Operator Panel with HMINavi Software |
| Manufacturer | Advantech |
| Display Size | 10.1" WSVGA TFT LCD |
| Dimensions | 270.1 x 212.1 x 43.4 mm (10.63" x 8.35" x 1.71") |
| Cutout Dimensions | 259.5 x 201.5 mm (10.22" x 7.93") |
| Weight | 1.1 kg (2.43 lbs) |
| Power Supply | 24V DC (±10%), 20W |
| Operating System | HMI RTOS |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| System Hardware | CPU | ARM9™ 32-bit RISC processor | - | High-performance industrial processor |
| Working Memory | 64 MB SDRAM | - | Data processing and runtime storage | |
| Storage | 128 MB NAND Flash | - | Program and data storage | |
| Backup Memory | 128 KB | - | Retains critical data during power off | |
| Display & Touchscreen | Display Type | WSVGA TFT LCD | - | High-resolution color display |
| Max. Resolution | 1024 x 600 | pixels | Optimal visual clarity | |
| Luminance | 350 | cd/m² | Standard brightness for clear view | |
| Backlight Life | 20,000 | hours | LED backlight service life | |
| Touchscreen Type | 4-wire analog resistive | - | Responsive touch input | |
| Communication | Serial Ports | 3 (RS-232/422/485, DB9 Female) | - | Diverse industrial serial connectivity |
| Ethernet | 10/100-BaseT (RJ45) | - | High-speed network communication | |
| USB Ports | 1 Client + 1 Host | - | Peripheral and data transfer ports | |
| Environmental | Operating Temperature | -15 ~ 65 | °C | Wide temperature tolerance |
| Storage Temperature | -20 ~ 70 | °C | Durable storage environment | |
| Humidity | 95% RH (non-condensing at 40°C) | - | Moisture resistance | |
| Ingress Protection | Front panel: IP66 | - | Dust and water jet protection |
Functional Capabilities
- Multi-Protocol Connectivity: Supports over 500 industrial communication protocols for PLCs, thermal controllers, and inverters, enabling seamless integration with diverse systems.
- Flexible Development Tool: Bundled with HMINavi Designer software (Windows 10 compatible) for intuitive HMI application development and configuration.
- Reliable Data Management: 128KB backup memory preserves critical parameters during power outages, ensuring operational continuity.
- Cross-Size Compatibility: Quickly switches applications between different LCD sizes without reconfiguration, enhancing development efficiency.
- Dual Orientation Support: Operates in both landscape and portrait modes to adapt to various installation environments.
Technical Features
- High-Performance Processor: ARM9™ 32-bit RISC processor with 64 MB SDRAM for smooth runtime performance in real-time control scenarios.
- Robust Enclosure Design: IP66-rated front panel resists dust and water jets, suitable for harsh industrial environments.
- Easy Installation: Panel mount design with standardized cutout dimensions (259.5 x 201.5 mm) for quick integration into control panels.
- Wide Operational Range: Functions reliably across -15~65°C operating temperature, ideal for extreme industrial conditions.
- Modular Connectivity: Three serial ports (RS-232/422/485) and Ethernet enable flexible communication with legacy and modern devices.
Application Areas
- Industrial Automation: Deployed in packaging machinery, label slitting systems, and food & beverage production lines for real-time monitoring and control.
- Process Control: Integrates with PLCs, inverters, and sensors to visualize and optimize industrial processes.
- Machine Human-Machine Interface (HMI): Provides intuitive operation for manufacturing equipment, improving operator efficiency and system reliability.
- Medium-Sized Control Panels: Ideal for medium-sized control panels in factory automation, logistics, and smart manufacturing setups.
