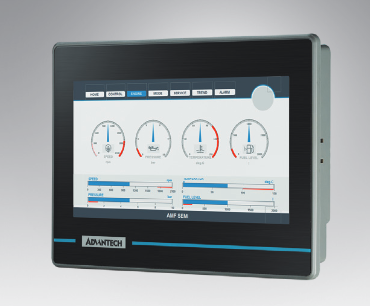

WOP-207K-NAE, Replace WOP-2070T-N2AE, Advantech, Panel
WOP-207K-NAE, Replace WOP-2070T-N2AE, Advantech, Panel
SKU: WOP-207K-NAE-REPLACE-WOP-2070T-N2AE-ADVANTECH-PANEL
Regular price
$401.00
Regular price
Sale price
$401.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | WOP-207K-NAE |
| Alternative Model | WOP-2070T-N2AE |
| Product Name | 7" WVGA Operator Panel with HMINavi Software |
| Manufacturer | Advantech |
| Display Size | 7" WVGA TFT LCD |
| Dimensions | 189.6 x 144.9 x 36 mm (7.46" x 5.70" x 1.42") |
| Cutout Dimensions | 175 x 132.5 mm (6.89" x 5.22") |
| Weight | 0.55 kg (1.21 lbs) |
| Power Supply | 24V DC (±10%), 20W |
| Operating System | HMI RTOS |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| System Hardware | CPU | ARM9™ 32-bit RISC processor | - | High-performance industrial processor | Working Memory | 64 MB SDRAM | - | Data processing and runtime storage | Storage | 128 MB NAND Flash | - | Program and data storage | Backup Memory | 128 KB | - | Retains critical data during power off |
| Display & Touchscreen | Display Type | WVGA TFT LCD | - | High-resolution color display | Max. Resolution | 800 x 480 | pixels | Optimal visual clarity | Luminance | 400 | cd/m² | Brightness for clear visibility | Backlight Life | 20,000 | hours | LED backlight service life | Touchscreen Type | 4-wire analog resistive | - | Responsive touch input |
| Communication | Serial Ports | 3 (RS-232/422/485) | - | Diverse industrial serial connectivity | Ethernet | 10/100-BaseT (RJ45) | - | High-speed network communication | USB Ports | 1 Client + 1 Host | - | Peripheral and data transfer ports |
| Environmental | Operating Temperature | -15 ~ 65 | °C | Wide temperature tolerance | Storage Temperature | -20 ~ 70 | °C | Durable storage environment | Humidity | 95% RH (non-condensing at 40°C) | - | Moisture resistance | Ingress Protection | Front panel: IP66 | - | Dust and water jet protection |
Functional Capabilities
- Multi-Protocol Connectivity: Supports over 500 industrial communication protocols for PLCs, thermal controllers, and inverters, enabling seamless integration with diverse systems.
- Flexible Development Tool: Bundled with HMINavi Designer software (Windows 10 compatible) for intuitive HMI application development and configuration.
- Reliable Data Management: 128KB backup memory preserves critical parameters during power outages, ensuring operational continuity.
- Cross-Size Compatibility: Quickly switches applications between different LCD sizes without reconfiguration, enhancing development efficiency.
- Dual Orientation Support: Operates in both landscape and portrait modes to adapt to various installation environments.
Technical Features
- High-Performance Processor: ARM9™ 32-bit RISC processor with 64 MB SDRAM for smooth runtime performance in real-time control scenarios.
- Robust Enclosure Design: IP66-rated front panel resists dust and water jets, suitable for harsh industrial environments.
- Easy Installation: Panel mount design with standardized cutout dimensions (175 x 132.5 mm) for quick integration into control panels.
- Wide Operational Range: Functions reliably across -15~65°C operating temperature, ideal for extreme industrial conditions.
- Modular Connectivity: Three serial ports (RS-232/422/485) and Ethernet enable flexible communication with legacy and modern devices.
Application Areas
- Industrial Automation: Deployed in packaging machinery, label slitting systems, and food & beverage production lines for real-time monitoring and control.
- Process Control: Integrates with PLCs, inverters, and sensors to visualize and optimize industrial processes.
- Machine Human-Machine Interface (HMI): Provides intuitive operation for manufacturing equipment, improving operator efficiency and system reliability.
- Panel-Mounted Solutions: Ideal for compact control panels in factory automation, logistics, and smart manufacturing setups.
Disclaimer
This product brief is generated by AI based on the Advantech WOP-207K-NAE technical document. While specifications such as display size, communication interfaces, and environmental ratings are directly extracted from the source, detailed installation manuals, software compatibility lists, and extended performance data may not be fully included. For accurate and comprehensive information, please refer to the official Advantech product documentation. This summary is for general reference only and does not guarantee product performance under all operational conditions.
