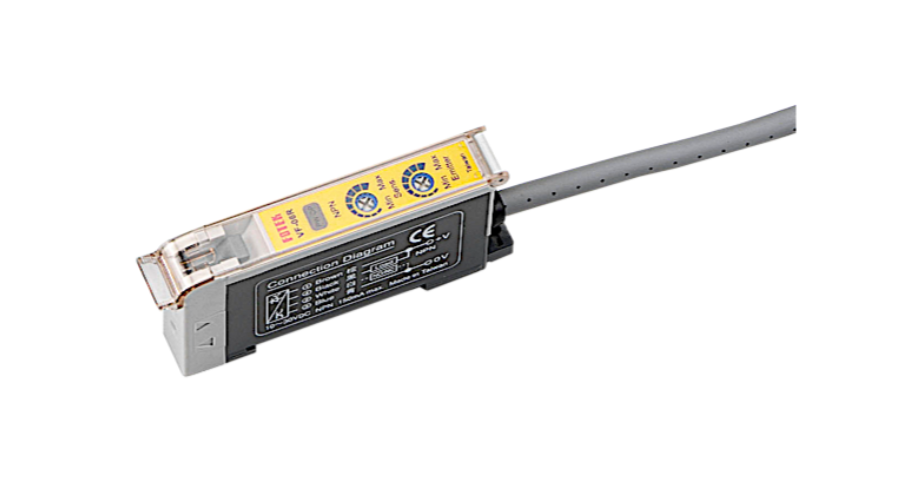

VF-06R, Fotek, Optical Fiber Sensor
VF-06R, Fotek, Optical Fiber Sensor
SKU: VF-06R-FOTEK-OPTICAL-FIBER-SENSOR
Regular price
$23.00
Regular price
Sale price
$23.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | VF-06R |
| Product Name | Optical Fiber Sensor (Twin Trimmer Setting Type) |
| Output Method | NPN |
| Emitter Type | Red LED |
| Protection Class | IP65 |
| Housing Material | Intensive ABS |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Electrical | Operating Voltage | 10-30 | VDC | DC supply range, ripple ≤20% (p-p) | Max. Current Consumption | 40 | mA | Maximum operating current | Output Current | 150 | mA | Maximum drive capacity |
| Optical | Sensing Distance | >85 (with FPR-51) | mm | Detection range with standard accessory | Response Time (ON/OFF) | <0.2/<0.25 | ms | Signal activation/deactivation delay | Hysteresis | ≤10% of sensing distance | - | Anti-chatter design |
| Mechanical & Environmental | Operating Temperature | -25~+80 | °C | Operational temperature range | Humidity Range | 35%~85% (non-condensing) | - | Working humidity requirement |
Functional Capabilities
- Dual Trimmer Adjustment: Features coarse emitter adjuster and fine sensitivity trimmer for precise distance setting.
- Switchable Output Status: Selectable NO (Normally Open)/NC (Normally Closed) mode for flexible control logic.
- Dual Protection: Built-in short-circuit and reverse polarity protection for enhanced reliability.
Technical Features
- High-Speed Response: <0.2ms (ON) response time for fast-moving object detection.
- Wide Temperature Operation: -25~+80°C range suitable for harsh industrial environments.
- IP65 Protection: Dust-tight and water-resistant design for rugged applications.
- Reinforced Housing: Constructed with intensive ABS for impact and corrosion resistance.
Application Areas
- Industrial Automation: Object counting, position sensing, and missing part detection on production lines.
- Packaging Equipment: Material presence and sealing integrity monitoring.
- Logistics Conveyance: Conveyor sorting and obstacle detection in material handling systems.
- Machinery Processing: Component positioning and machining status monitoring in machine tools.
Disclaimer
This product brief is generated by AI. While specifications are directly extracted, detailed installation guides, long-term reliability data, and industry-specific adaptation information may not be fully covered. Refer to official documentation for complete technical details. This summary is for general reference only and does not guarantee performance under all conditions.
