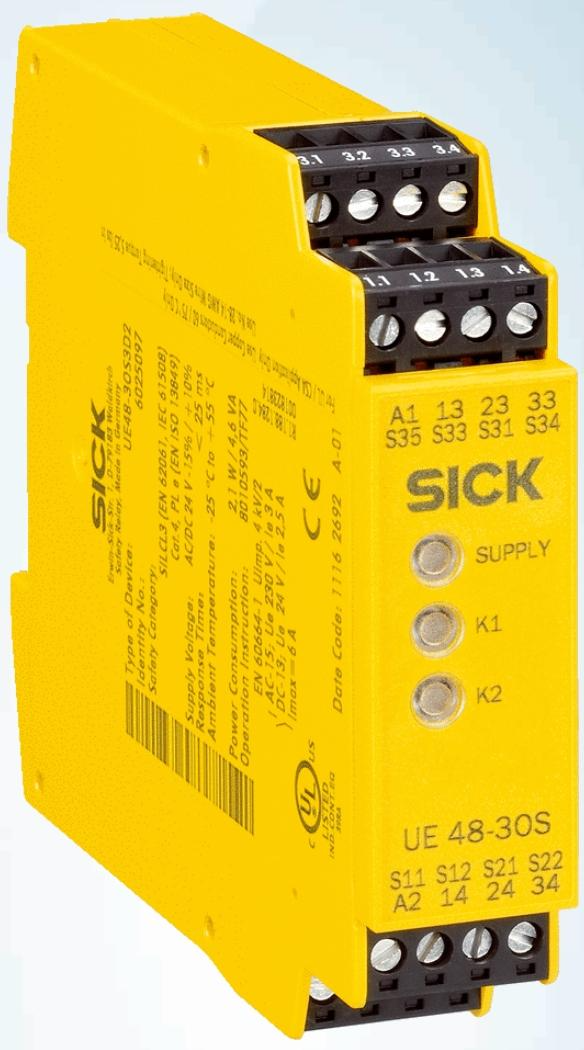

UE48-30S2D2S1, SICK, Relay
UE48-30S2D2S1, SICK, Relay
SKU: UE48-30S2D2S1-SICK-RELAY
Regular price
$288.00
Regular price
Sale price
$288.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | UE48-30S2D2S1 |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| Power Supply | 24 V AC/DC (20.4 V–26.4 V) |
| Dimensions | 22.5 mm × 114 mm × 96.5 mm |
| Weight | 0.21 kg |
| Contamination Rating | 3 (EN 50178) |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Safety Parameters | B10d (AC-15, 230 V, 0.75 A) | 5.9 × 10⁶ switching cycles | - | Mechanical life under specified load | PFH D | 3.0 × 10⁻⁸ /h | - | Probability of dangerous failure per hour | Mission Time (Tₘ) | 20 years | - | Design service life |
| Electrical Characteristics | Supply Voltage Range | 20.4 V–26.4 V AC/DC | V | Operational voltage range | Control Current | 40 mA–100 mA | mA | Current for control input | Output Current (Enabling Paths) | 10 mA–6 A (per path) | A | Current loading capacity |
| Mechanical Features | Dimensions (W×H×D) | 22.5×114×96.5 | mm | Compact housing design |
Functional Capabilities
- High Safety Integrity: Complies with SIL 3 (IEC 61508) and Category 4 (EN ISO 13849), ensuring reliable safety control in critical systems.
- Dual-Channel Control: Supports redundant control inputs for enhanced fault detection and system safety.
- Wide Voltage Compatibility: Operates on 24 V AC/DC with ±20% tolerance, suitable for diverse industrial power environments.
- Short-Circuit Protection: Integrated electronic fuse prevents damage from excessive current in control circuits.
- Positive Contact Drive: Ensures reliable contact engagement with silver alloy contacts, reducing arcing and wear.
Technical Features
- Compact Design: Space-efficient 22.5 mm width for easy installation in crowded control panels.
- Long Service Life: 20-year mission time and up to 5.9 × 10⁶ switching cycles (AC-15 load), minimizing maintenance needs.
- Fast Response Time: ≤25 ms activation time for rapid safety shutdowns in emergency situations.
- Environmental Resistance: Rated for contamination level 3, suitable for dusty or corrosive industrial environments.
Application Areas
- Industrial Machinery: Used in presses, robotics, and conveyor systems to enforce safety interlocks and emergency stops.
- Automation Systems: Integrates with safety光幕, emergency buttons, and sensors for compliant machine guarding.
- Process Control: Ensures safe shutdowns in chemical, pharmaceutical, and manufacturing processes.
- Material Handling: Protects operators and equipment in automated storage and retrieval systems.
Disclaimer
This product brief is generated by AI based on the SICK UE48-3OS series datasheet, focusing on common specifications applicable to UE48-30S2D2S1. While safety integrity levels, electrical parameters, and mechanical dimensions are derived from the document, model-specific details (e.g., exact pin configurations or unique certifications) may differ. For precise information, including installation guidelines and full safety documentation, please refer to the official SICK product manual. This summary is for general reference only and does not guarantee compatibility or performance in all applications.
