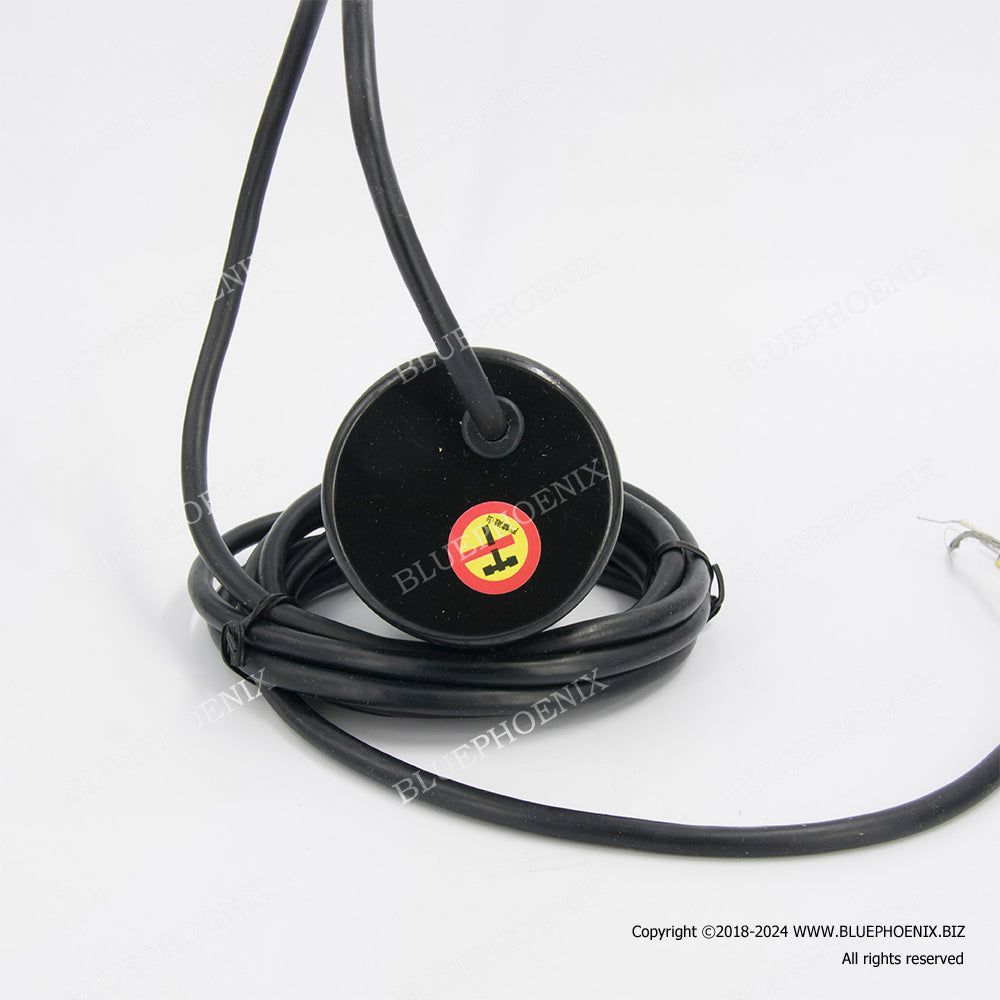

TRD-J1000RZ, Koyo, Incremental Rotary Encoder
TRD-J1000RZ, Koyo, Incremental Rotary Encoder
SKU: TRD-J1000RZ-KOYO-INCREMENTAL-ROTARY-ENCODER
Couldn't load pickup availability
φ50 Incremental Type
- Long service-life with a φ50 mm miniature case and φ8 mm thick shaft.
- Realizes 1,024 pulses with a metal slit board that resists
vibrations and impacts.
- Wide power range of 4.75 to 30 V DC.
- Totem-pole output suitable for cable extension
Dimension: 5.0 x 5.0 x 7.0 (cm)
Weight: 220 g--------------------------------------------------------------------------------------------------
|
Encoder Type |
Incremental |
|
Duty Type |
Medium |
|
Pulse Per Revolution |
1000 |
|
Input Voltage (VDC) |
5-30 |
|
Output Form |
Push-Pull (Totem Pole) |
|
Signal Format |
Quadrature (2-Phase Output) + Home Position |
|
Output From |
Back |
|
Shaft |
Solid |
|
Shaft Diameter (mm) |
8 |
|
Diameter (mm) |
50 |
|
Depth (mm) |
50 |
|
Mounting Pitch (mm) |
40 |
|
Cable Length (meter) |
0.50 |
|
Connector Type |
Tinned Ends |
|
Protection Level |
IP50 (Dust Proof) |
|
Mounting Screws |
Included |
|
Short Circuit Protection |
No |
|
Reverse Origin Action |
Positive Logic (Active High) |
