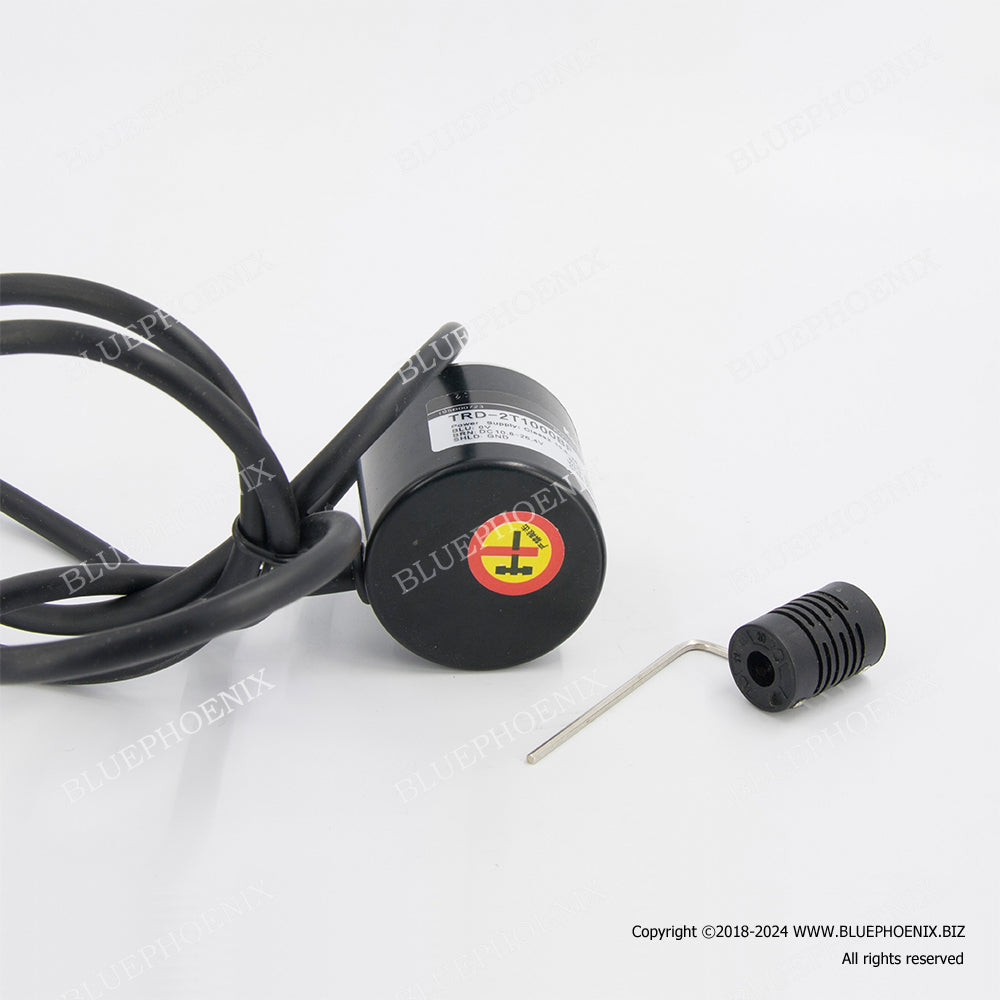

TRD-2T1000BF, Koyo, Incremental Rotary Encoder

Encoder Type

Incremental

Duty Type

Light

Pulse Per Revolution

1000

Input Voltage (VDC)

12-24

Output Form

Push-Pull (Totem Pole)

Signal Format

Quadrature (2-Phase Output) + Home Position

Output From

Side

Shaft

Solid

Shaft Diameter (mm)

6

Diameter (mm)

38

Depth (mm)

30

Mounting Pitch (mm)

30

Cable Length (meter)

1.00

Connector Type

Tinned Ends

Protection Level

IP50 (Dust Proof)

Mounting Screws

Included

Short Circuit Protection

Yes

Reverse Origin Action

Negative Logic (Active Low)
