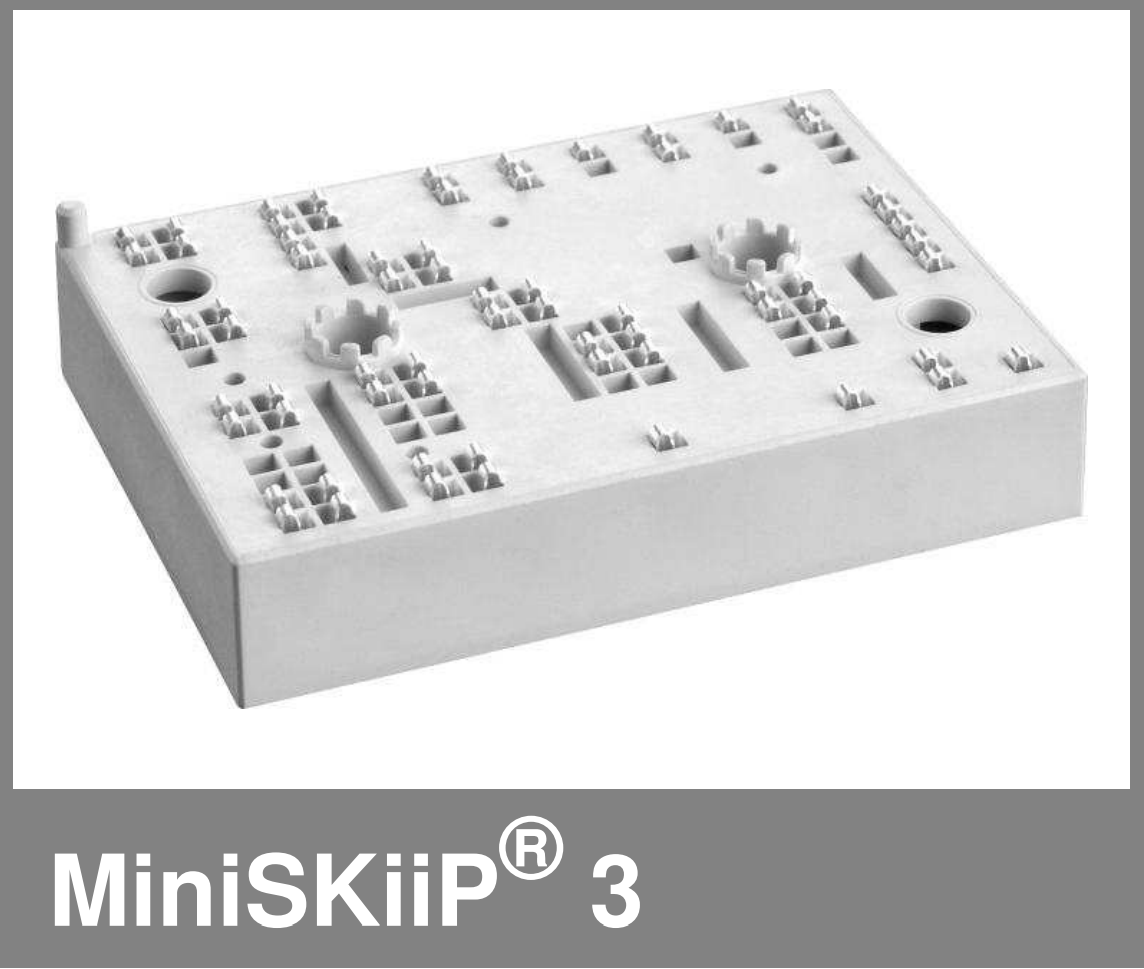

SKiiP 39AC12T4V1, Semikron, MiniSKiiP®3 Intelligent Power Module
SKiiP 39AC12T4V1, Semikron, MiniSKiiP®3 Intelligent Power Module
SKU: SKIIP-39AC12T4V1-SEMIKRON-MINISKIIP®3-INTELLIGENT-POWER-MODULE
Regular price
$66.00
Regular price
Sale price
$66.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | SKIIP39AC12T4V1 |
| Manufacturer | SEMIKRON |
| Type | MiniSKiiP®3 Intelligent Power Module |
| Package Type | Isolated Baseplate with PCB Mounting |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Maximum Ratings | Collector-Emitter Voltage (VCES) | 1200 | V |
| Continuous Collector Current (IC) | 450 (Tc=25°C) 300 (Tc=80°C) |
A | |
| Gate-Emitter Voltage (VGES) | ±20 | V | |
| Forward Surge Current (IFSM) | 450 | A | |
| Junction Temperature (Tj) | -40 to +175 | °C | |
| Isolation Voltage (Visol) | 2500 | VAC | |
| Module RMS Current | 160 | A | |
| Electrical Characteristics | Threshold Voltage (VGE(th)) | 4.5 (Typical) | V |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.1 (Typical, Tj=25°C) | V | |
| Reverse Recovery Charge (Qrr) | ≤11.3 | μC | |
| Thermal Resistance (Rth(j-s)) | 0.4 | K/W | |
| Gate Threshold Voltage (VGE(th)) | 4.5 | V |
Functional Capabilities
- Integrated IGBT and freewheeling diode
- Built-in short-circuit and overcurrent protection
- Isolated baseplate for compact mounting
Technical Features
- Low saturation voltage (VCE(sat) = 2.1 V Typ.)
- High-frequency switching capability
- Optimized thermal management
- Space-saving MiniSKiiP®3 package
Application Areas
No specific application areas are provided in the documentation.
Disclaimer
This product brief is generated by AI based on the provided documentation. For precise technical details, please refer to the official SEMIKRON datasheet. The information presented here is for general reference only and may not cover all specifications or updates.
