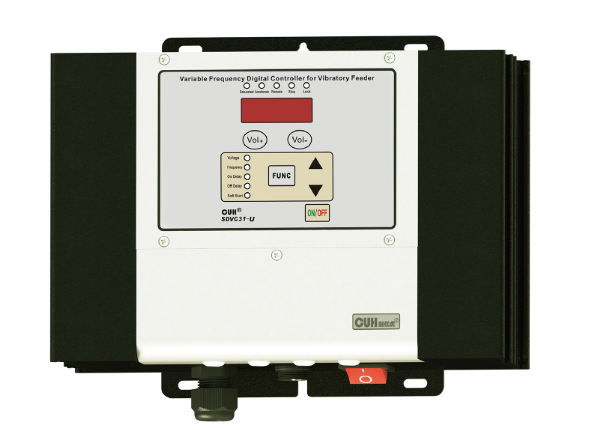

SDVC31 , CUH, Variable Frequency Digital Controller for Vibratory Feeder
SDVC31 , CUH, Variable Frequency Digital Controller for Vibratory Feeder
SKU: SDVC31-CUH-VARIABLE-FREQUENCY-DIGITAL-CONTROLLER-FOR-VIBRATORY-FEEDER
When you see these red characters, it means that these prices are not transaction prices, they are for reference only. We will not accept the payment if you pay directly without getting a quote from us.
How to get a price and buy this product?
Method A: You can send a message, then we will contact you. After we update the latest price, then you can make an order.
Method B: You can add this product into the cart and complete the order without paying. Then we will contact you and you can make payment after we send you a new order with an updated price.
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model Series | SDVC31-S(1.5A), SDVC31-M(3.0A), SDVC31-L(4.5A), SDVC31-XL(6A), SDVC31-U(10A) |
| Manufacturer | CUH |
| Type | Variable Frequency Digital Controller for Vibratory Feeder |
|
Weight (without accessory) |
SDVC31-S(1.5A): 560g SDVC31-M(3.0A): 860g SDVC31-L(4.5A): 1240g SDVC31-XL(6A): 1720g SDVC31-U(10A): 2670g |
|
Package Dimensions (L×W×H) |
SDVC31-S(1.5A): 190×53.6×94.5 mm SDVC31-M(3.0A): 190×100.8×94.5 mm SDVC31-L(4.5A): 190×124×94.5 mm SDVC31-XL(6A): 190×147.8×94.5 mm SDVC31-U(10A): 190×242×94.5 mm |
Key Specifications
| Category | Parameter | SDVC31-S(1.5A) | SDVC31-M(3.0A) | SDVC31-L(4.5A) | SDVC31-XL(6A) | SDVC31-U(10A) | Unit | Description |
|---|---|---|---|---|---|---|---|---|
| Input Parameters | Input Voltage | 85–260 | V (AC RMS) | Input voltage range | ||||
| Output Voltage Parameters | Adjustable Output Voltage | 0–260 | V | ≤ 150% of input voltage | ||||
| Voltage Adjustment Accuracy | 1 | V | Voltage adjustment precision | |||||
| Voltage Regulation Accuracy | 0–10% | % | ΔVout/ΔVin | |||||
| Response Time of Regulation | 0.0025–0.025 | s | Voltage regulation response time | |||||
| Output Current & Power | Adjustable Output Current | 0–1.5 | 0–3 | 0–4.5 | 0–6 | 0–10 | A | Output current range |
| Output Power | 0–330 VA | 0–660 VA | 0–990 VA | 0–1320 VA | 0–2200 VA | VA | Output power range | |
| Frequency Parameters | Output Frequency | 40–400 | Hz | Adjustable frequency range | ||||
| Frequency Adjustment Accuracy | 0.1 | Hz | Frequency adjustment precision | |||||
| Time-related | Soft Start Time | 0–10 (0.5 default) | s | Soft start time range (default: 0.5s) | ||||
| On/Off Delay Time | 0–20 (0.2 default) | s | On/off delay time range (default: 0.2s) | |||||
| Delay Time Accuracy | 0.1 | s | On/off delay time precision | |||||
| Protection | Overheat Protection Temp | 58–66 | 60–65 | °C | Trigger temperature for overheat protection | |||
| Other Parameters | DC Control Output Voltage | 22–26 | V | DC control output voltage | ||||
| DC Control Output Current | 0–200 | mA | DC control output current | |||||
| Analog Control Signal | 1–5 | V | Remote speed control voltage | |||||
| Digital Control Signal | 24 | V | Digital switching signal | |||||
| Adjustment Method | 6-button | - | Keypad adjustment method | |||||
| Standby Power Consumption | 3 | W | Standby power consumption | |||||
| Display Method | LED Digital Tubes | - | Display type | |||||
| Ambient Temperature | 0–40 | °C | Operating temperature (no condensation) | |||||
| Ambient Humidity | 10–60% | % | Relative humidity range | |||||
Functional Capabilities
- Frequency Adjustment: Manually adjust output frequency to match the resonant frequency of vibratory feeders, enabling smooth, quiet, and energy-efficient material feeding.
- Automatic High-Precision Voltage Regulation: Internal digital circuitry eliminates feed speed variations caused by mains voltage fluctuations.
- Time-Adjustable Soft Start: Gradually increases output voltage from 0 to the preset value during startup to avoid mechanical shock, with digitally configurable soft start time.
- Multi-Mode Control: Supports ON/OFF control via 1 NPN switch sensor, PLC, or CUH Intelligent Photoelectric Sensor; remote speed adjustment via external potentiometer, PLC, or 1–5V DC signal.
- DC Control Output: Provides low-voltage DC power to drive solenoids or external devices in conjunction with controller ON/OFF states.
- Keypad Lock: Prevents misoperation by locking all buttons via a 2-second long-press on the ON/OFF button.
- Comprehensive Protection: Includes digital overheat protection, overcurrent protection, restorable short-circuit protection, and presettable max output voltage to safeguard the load.
Technical Features
- Digital Control Architecture: Enables precise regulation of frequency, voltage, and time parameters for consistent performance.
- High-Precision Regulation: Achieves tight voltage and frequency control with minimal error margins, ensuring stable operation.
- Soft Start Technology: Reduces mechanical stress on feeders during startup, extending equipment lifespan.
- Robust Protection Mechanisms: Instantaneous responses to overheat, overcurrent, and short-circuit events to prevent damage to the controller and load.
Application Areas
Vibratory Feeder Systems: Ideal for industrial production lines requiring stable and efficient material feeding, such as in manufacturing, packaging, and automation industries.
Disclaimer
This product brief is generated by AI based on information from the website. For accurate and complete technical specifications, please refer to the official documentation from CUH. The content here is for general reference only and may not include all model-specific details or updates.
