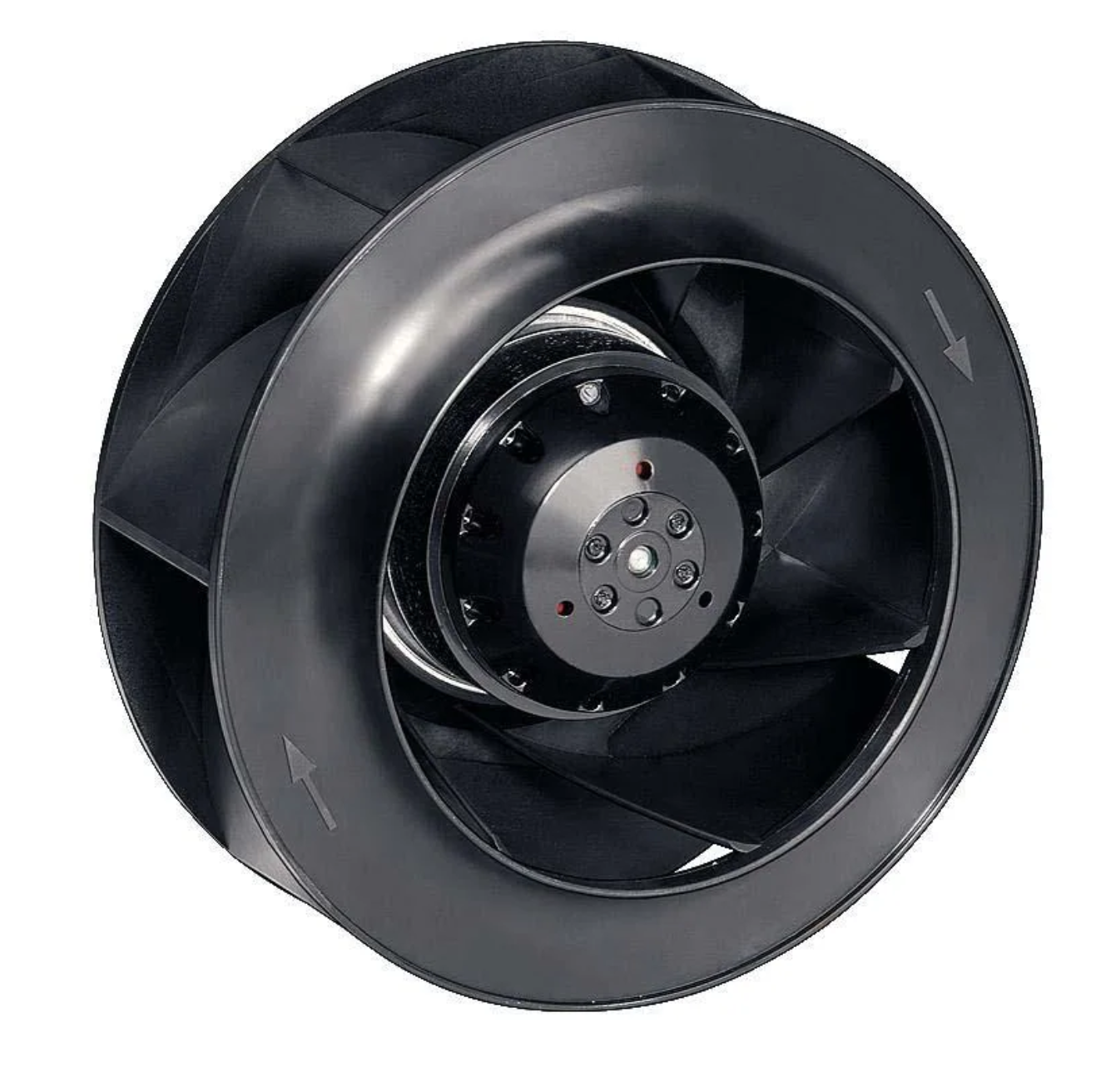

R2E225-BD92-09, ebm-papst, Fan
R2E225-BD92-09, ebm-papst, Fan
SKU: R2E225-BD92-09-EBM-PAPST-FAN
Regular price
$83.00
Regular price
Sale price
$83.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | R2E225 - BD92 - 09 |
| Product Name | AC Centrifugal Fan, Backward - Curved, Single - Intake |
| Manufacturer | ebm - papst Mulfingen GmbH & Co. KG |
| Weight | 2.28 kg |
| Fan Size | 225mm |
| Package Dimensions | Not mentioned in the documents, temporarily unavailable |
Key Specifications
| Category | Parameter | Value at 50Hz | Value at 60Hz | Unit | Description |
|---|---|---|---|---|---|
| Electrical Parameters | Nominal Voltage | 230 | 230 | VAC | Operating voltage |
| Frequency | 50 | 60 | Hz | Power supply frequency | |
| Power Consumption | 135 | 200 | W | Power consumed during normal operation | |
| Current Draw | 0.6 | 0.88 | A | Operating current | |
| Starting Current | 1.2 | 1.2 | A | Current at startup | |
| Capacitor | 4 | 4 | µF | Capacitance value | |
| Capacitor Voltage | 450 | 450 | VDB | Voltage withstand capacity of the capacitor | |
| Mechanical Parameters | Speed | 2650 | 2950 | min⁻¹ | Fan rotation speed |
| Number of Blades | 7 | - | - | Number of fan blades | |
| Degree of Protection | IP44 (installation - and position - dependent as per EN 60034 - 5 standard) | - | Dust and water protection level | ||
| Insulation Class | “F” | - | Motor insulation class | ||
| Moisture Protection Class | F1 - 2 | - | Moisture resistance level | ||
| Environmental Parameters | Min. Back Pressure | 0 | 0 | Pa | Minimum back pressure for operation |
| Min. Ambient Temperature | -25 | -25 | °C | Lowest ambient temperature for normal operation | |
| Max. Ambient Temperature | 55 | 55 | °C | Highest ambient temperature for normal operation | |
| Min. Permitted Ambient Temp. for Motor (Transport/Storage) | -40 | -40 | °C | Lowest temperature allowed for motor during transport or storage | |
| Max. Permitted Ambient Temp. for Motor (Transport/Storage) | +80 | +80 | °C | Highest temperature allowed for motor during transport or storage | |
Functional Capabilities
- Stable Air Delivery: Can operate stably at different frequencies (50Hz and 60Hz), continuously providing reliable air flow to meet various ventilation and heat dissipation requirements.
- Multi - Environment Adaptability: Has certain environmental adaptability and can work normally in an ambient temperature range from - 25°C to 55°C. The motor can also maintain stable performance within the transport and storage temperature range of - 40°C to + 80°C.
- Basic Protection Functions: With an IP44 protection level, it can prevent a certain degree of dust intrusion and water splashing, ensuring normal use in general industrial environments. The insulation class is “F”, providing good electrical insulation
