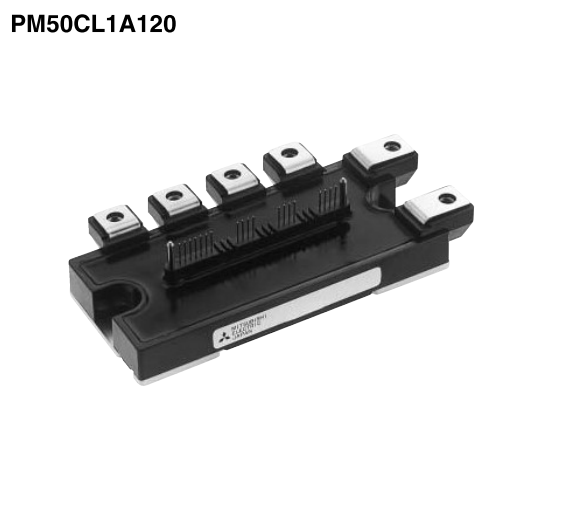

PM50CL1A120 Intelligent Power Module
Product Information
| Parameter | Details |
|---|---|
| Product Model | PM50CL1A120 |
| Manufacturer | Mitsubishi Electric Corporation |
| Type | Intelligent Power Module (IPM) with Inverter and Drive/Protection IC |
| Package | Flat-Base Type Insulated Package |
| Certifications | UL Recognized |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Maximum Ratings | Collector-Emitter Voltage (VCES) | 1200 | V |
| Collector Current (IC) | 50 (DC) | A | |
| Peak Collector Current (ICP) | 100 | A | |
| Total Power Dissipation (PC) | 462 | W | |
| Junction Temperature (Tj) | -20 ~ +150 | °C | |
| Electrical Characteristics | VCE(sat) (Typ/Max) | 1.65 / 2.15 (Tj=25°C) 1.85 / 2.35 (Tj=125°C) |
V |
| VEC (Diode Forward Voltage) | 2.3 (Typ) 3.3 (Max) |
V | |
| Switching Time (ton/toff) | 0.3~2.0 / 1.2~2.8 | μs | |
| Reverse Recovery Time (trr) | 0.3~0.8 | μs | |
| Control Part | Supply Voltage (VD) | 20 | V |
| Input Voltage (VCIN) | 20 | V | |
| Thermal Resistance | Junction-to-Case (Rth(j-c)) | 0.27 (IGBT) 0.47 (Diode) |
°C/W |
| Weight | 380 | g | |
| Mechanical | Mounting Torque | M5 Screw: 2.5~3.5 | N·m |
Functional Capabilities
- Integrated 3-phase 50A/1200V IGBT inverter with current and temperature sensing
- Monolithic gate drive and protection logic
- Short-circuit, over-temperature, and under-voltage protection with fault output
- Over-temperature detection at chip surface for enhanced safety
- Error output signals from all upper and lower arms
Technical Features
- 5th Generation Full-Gate CSTBT™ chip technology
- Low saturation voltage (1.65V typ.) for high efficiency
- High isolation voltage (2500V RMS)
- Compatible with L-series packages for easy integration
- Built-in NTC thermistor for thermal monitoring
- Low thermal resistance for efficient heat dissipation
Application Areas
- General-purpose inverters
- Servo drives and motor control systems
- Industrial automation equipment
- Power supplies with protection requirements
- Renewable energy systems
