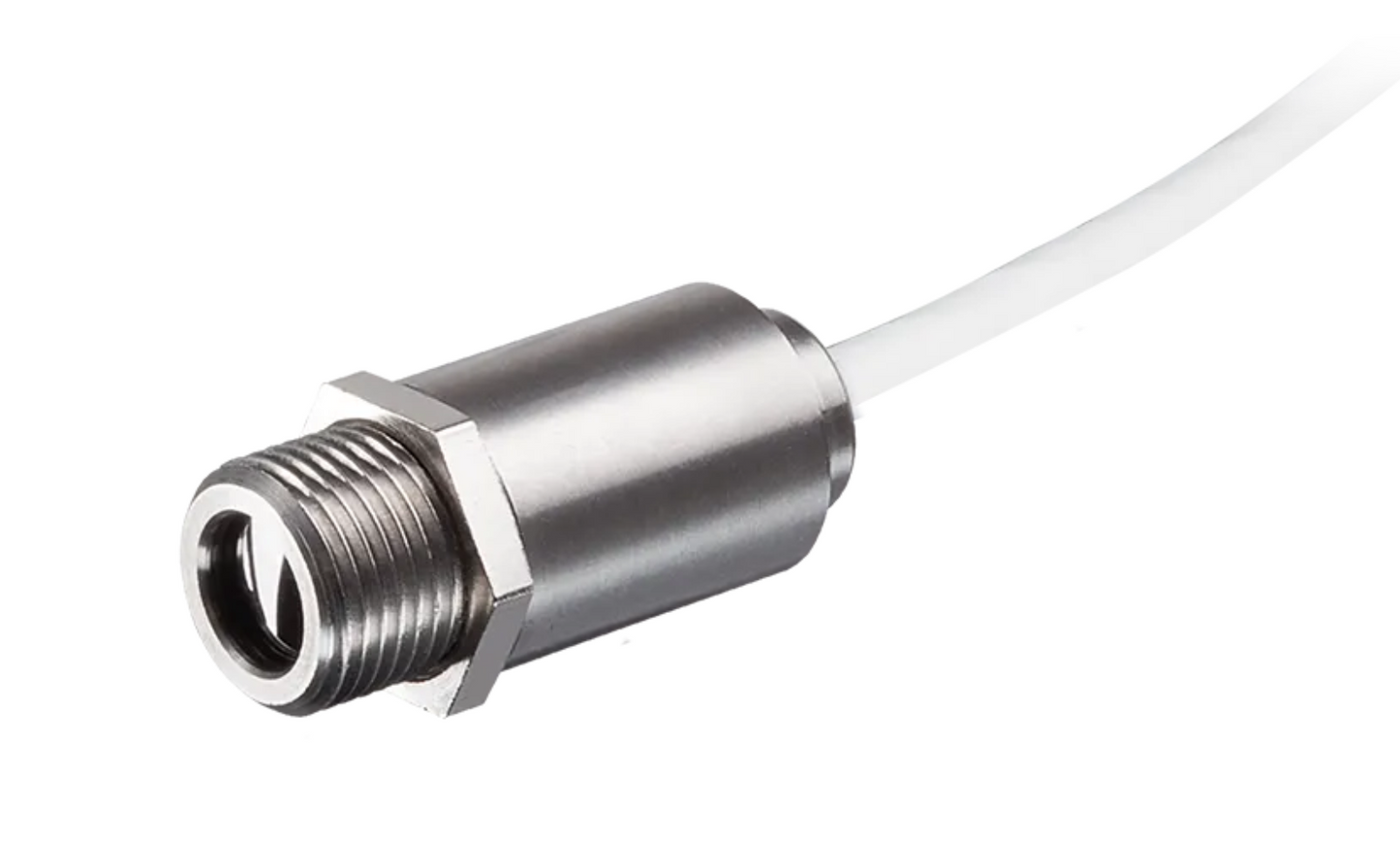

OPTCTLT20CB8, Optris, Pyrometer
OPTCTLT20CB8, Optris, Pyrometer
SKU: OPTCTLT20CB8-OPTRIS-PYROMETER
Regular price
$648.00
Regular price
Sale price
$648.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | CTfast LT15, CTfast LT25 |
| Product Name | Compact Two-piece Fast Industrial Infrared Pyrometer |
| Manufacturer | Optris |
| Temperature Range | -50 °C to 975 °C (-58 °F to 1787 °F) |
| Spectral Range | 8 µm to 14 µm |
| Response Time | 9 ms (LT15), 6 ms (LT25) |
| Distance-to-Spot Ratio | Up to 15:1 (LT15), 25:1 (LT25) |
| Weight | Sensing head: 40 g; Electronics: 420 g |
| Dimensions | Sensing head: Ø12 mm x 35 mm; Electronics: 122 x 70 x 27 mm |
| Power Supply | 8-30 V DC |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Detector | Type | Thermopile | - | High-sensitivity thermal sensor |
| Measurement Principle | Single Color | - | Monochromatic temperature measurement | |
| Optical Features | Distance-to-Spot Ratio | 15:1 (LT15), 25:1 (LT25) | - | Optical resolution for target sizing |
| Spot Size (SF Optics) | 26.7 mm at 400 mm (LT15); 44 mm at 1100 mm (LT25) | mm | Minimum target size at specified distance | |
| Measurement | Accuracy | ±1% or ±2 °C | - | Measurement uncertainty |
| Repeatability | ±0.75% or ±1.4 °F | - | Consistent measurement reliability | |
| Thermal Sensitivity (NETD) | 200 mK (LT15), 400 mK (LT25) | K | Minimum detectable temperature change | |
| Environmental | Operating Temp (Sensing Head) | -20 °C to 120 °C | °C | No cooling required up to 120 °C |
| Protection Class | IP65, NEMA 4 | - | Dust and water jet protection |
Functional Capabilities
- Rapid Temperature Capture: Ultra-fast response time (6 ms for LT25, 9 ms for LT15) enables real-time monitoring in fast-moving processes.
- Non-Contact Measurement: Operates across a wide temperature range (-50 °C to 975 °C), ideal for high-emissivity targets in industrial and research settings.
- Flexible Connectivity: Offers analog outputs (0-20 mA/4-20 mA/0-5 V/0-10 V) and digital interfaces (USB, Ethernet, Profibus) for seamless integration into control systems.
- Rugged Design: Sensing head withstands ambient temperatures up to 120 °C without cooling, with IP65 protection for harsh environments.
Technical Features
- Compact Two-Piece Design: World’s smallest sensing head (Ø12 mm x 35 mm) for easy installation in tight spaces, with separate electronics box for flexible mounting.
- High Optical Resolution: Distance-to-spot ratios up to 25:1 (LT25) allow precise measurement of small targets at long distances.
- Advanced Signal Processing: Supports peak/valley hold, threshold triggering, and hysteresis for customized control loop applications.
- Stainless Steel Construction: Enhances durability and resistance to corrosion in industrial environments.
Application Areas
- Industrial Automation: Monitoring conveyor belts, kilns, and production lines requiring fast, non-contact temperature control.
- Plastic Molding: Optimized for rapid cycle processes in injection molding and extrusion, ensuring consistent quality.
- Research & Development: Precise temperature measurement in labs for material testing and thermal analysis.
- High-Temperature Environments: Furnaces, ovens, and foundries where ambient temperatures up to 120 °C are common.
Disclaimer
This product brief is generated by AI based on information from the Optris CTfast LT product page. While technical specifications such as temperature range, response time, and connectivity options are derived directly from the source, detailed installation manuals, software compatibility specifics, and extended environmental testing data may not be fully represented. For accurate and comprehensive information, including calibration procedures and accessory compatibility, please refer to the official Optris datasheet or contact the manufacturer. This summary is for general reference only and does not guarantee product performance under all operational conditions.
