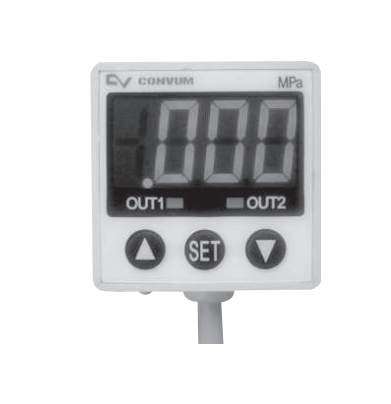

MPS-P33RC-NGAT, Convum, Sensor
MPS-P33RC-NGAT, Convum, Sensor
SKU: MPS-P33RC-NGAT-CONVUM-SENSOR
Regular price
$97.00
Regular price
Sale price
$97.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | MPS-P33RC-NGAT |
| Product Name | Digital Display Positive Pressure Sensor |
| Pressure Range | -0.1 to 1 MPa (positive pressure) |
| Display Type | 3.5-digit 7-segment red LCD |
| Protection Class | IP65 |
| Power Supply | DC 12-24V (±10%), ripple ≤10% |
| Weight | 105 g (with lead wire) |
| Port Size | Rc1/8, NPT1/8, G1/8 (female threads) |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Measurement | Proof Pressure | 1.5 MPa | MPa | Maximum pressure without damage |
| Resolution | 0.001 MPa | - | Minimum pressure detection step | |
| Repeatability | ±0.2% F.S. or 1 digit | - | Measurement consistency | |
| Electrical | Power Consumption | <55 mA | mA | Typical current draw |
| Switch Output | NPN/PNP open collector (2 points) | - | Digital signal output type | |
| Environmental | Operating Temperature | 0-50 °C | °C | Valid working temperature range |
| Humidity | 35-85% RH (non-condensing) | - | Relative humidity tolerance |
Functional Capabilities
- Wide Positive Pressure Range: Measures up to 1 MPa, suitable for high-pressure pneumatic systems and air compressor monitoring.
- Dual Output System: Features 2 switch outputs (NPN/PNP open collector) for discrete control and an analog output (1-5V) for real-time pressure feedback.
- User-Friendly Setup: Adjustable via UP/DOWN keys with automatic settings mode for quick threshold configuration.
- Robust Protection: IP65 rating ensures resistance to dust and water jets, suitable for industrial environments.
Technical Features
- Silicon Diaphragm Sensing: High-precision silicon diaphragm for reliable measurement in non-corrosive gas applications.
- Fast Response: <2.5 ms typical response time (with adjustable options: 24, 192, 768 ms) for real-time pressure monitoring.
- Compact Design: Lightweight (105 g) with multiple port options for flexible installation in tight spaces.
- Temperature Stability: Maintains ±2% F.S. accuracy over 0-50 °C, minimizing thermal drift.
Application Areas
- Pneumatic Systems: Ideal for monitoring and controlling pressure in air compressors, valves, and fluid power systems.
- Industrial Automation: Integrates with PLCs for pressure regulation in production lines and machinery.
- Process Control: Suitable for non-corrosive gas environments in manufacturing, packaging, and material handling.
Disclaimer
This product brief is generated by AI based on the provided technical document for the MPS-33 series, focusing on the MPS-P33RC-NGAT model. While specifications such as pressure range, output types, and environmental ratings are directly extracted, detailed installation instructions, specific compatibility data, and extended operational parameters may not be fully represented. For precise technical information, please refer to the official product manual. This summary is for general reference only and does not guarantee performance under all conditions.
