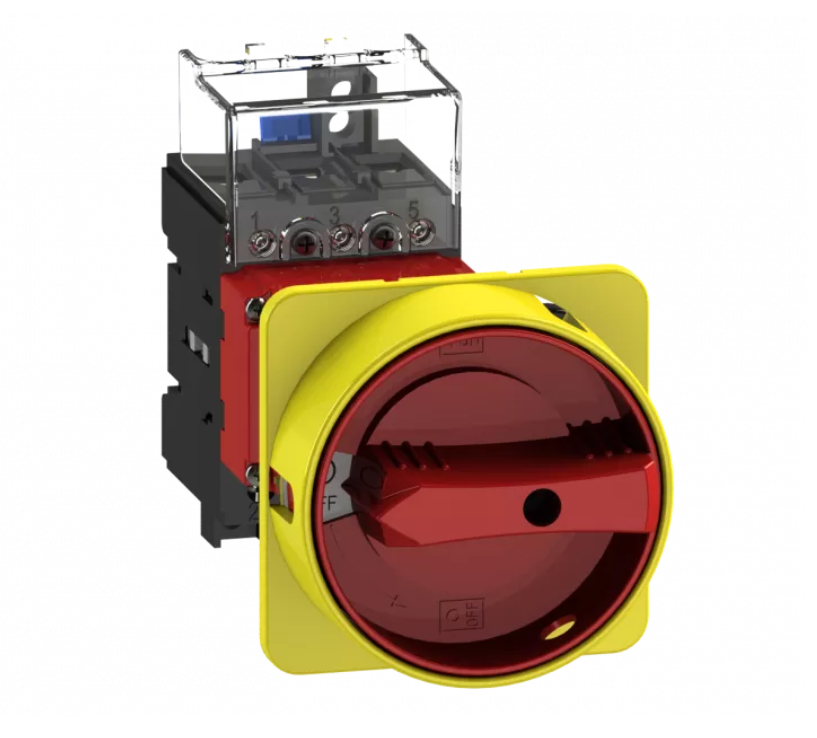

ML2-063-V-1880-HS(MZ37016), MERZ, Compact Switch (Main/Emergency-off Switch)
ML2-063-V-1880-HS(MZ37016), MERZ, Compact Switch (Main/Emergency-off Switch)
SKU: ML2-063-V-1880-HSMZ37016-MERZ-COMPACT-SWITCH-MAIN-EMERGENCY-OFF-SWITCH
When you see these red characters, it means that these prices are not transaction prices, they are for reference only. We will not accept the payment if you pay directly without getting a quote from us.
How to get a price and buy this product?
Method A: You can send a message, then we will contact you. After we update the latest price, then you can make an order.
Method B: You can add this product into the cart and complete the order without paying. Then we will contact you and you can make payment after we send you a new order with an updated price.
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | ML2-063-V-1880-HS |
| MERZ Catalog Order Number | MZ 37 016 |
| Type | Compact Switch (Main/Emergency-off Switch) |
| Category | Compact Switches |
| Installation Type | Base mounting |
| Mounting Method | Door coupling with lockout handle; supports 3 padlock lock possibilities |
| Handle/Front Shield Color | Red/yellow |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Electrical Ratings | Rated Current (Ith) | 63 | A | Continuous thermal current rating |
| Poles | 3-pole | - | Three-phase configuration | |
| AC-3 Power Rating | 22 | kW | Power rating for motor switching | |
| AC-23 Power Rating | 30 | kW | Power rating for general switching | |
| Mechanical Features | Padlock Lock Possibilities | 3 | - | Number of padlocks supported |
| Handle Design | Lockable | - | Red/yellow handle with lockout | |
| Design Specifications | Enclosure Protection | IP55 | - | Dust-tight and protected against low-pressure water jets |
| Front Plate Dimensions | 86 x 86 mm | - | External dimensions of front plate | |
| Mounting Cutout Size | 48x48 mm | - | Required cutout for installation |
Functional Capabilities
- Dual-Purpose Operation: Functions as both a main switch for normal circuit control and an emergency-off switch for rapid shutdown.
- Secure Lockout Mechanism: Supports up to 3 padlocks on the handle to prevent unauthorized operation, enhancing safety in industrial environments.
- Door Coupling Design: Integrates with door interlock systems to ensure mechanical interlock between switch state and door access.
- High Visibility Handle: Red/yellow color scheme for easy identification of switch status and emergency shutdown points.
Technical Features
- Compact Form Factor: Space-efficient design with a front plate size of 86x86 mm, suitable for tight installation spaces.
- IP55 Protection Rating: Provides dust and water jet resistance, making it suitable for harsh industrial environments.
- Robust Mechanical Construction: Designed for frequent operation and secure locking, ensuring long-term reliability.
- Standard Mounting Interface: Requires a 48x48 mm cutout for base mounting, compatible with common industrial panel setups.
Application Areas
- Industrial Machinery: Used as a primary power switch or emergency stop in manufacturing equipment, conveyor systems, and production lines.
- Power Distribution Panels: Installed in control panels for safe isolation and switching of three-phase circuits.
- Safety-Critical Systems: Ideal for applications requiring emergency shutdown capabilities, such as machinery in mining, construction, or automotive industries.
- Door-Interlocked Systems: Integrated with access doors in enclosures to ensure power is disconnected before maintenance or inspection.
Disclaimer
This product brief is generated by AI based on information from the provided MERZ webpage. While efforts are made to accurately reflect the product specifications, technical details (e.g., weight, environmental ratings) may be incomplete due to limited data availability. For precise and comprehensive information, including installation guidelines and compliance certifications, please refer to the official MERZ technical documentation or contact the manufacturer. This summary is for general reference only and does not constitute a warranty or guarantee of product performance.
