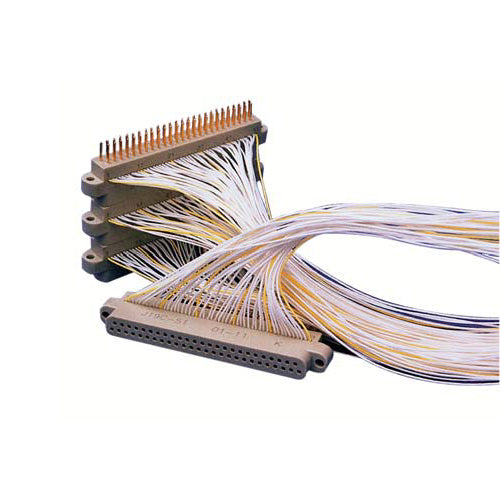

J19C, Three-Way Electrical Connector
J19C, Three-Way Electrical Connector
SKU: J19C-CHINA-THREE-WAY-ELECTRICAL-CONNECTOR
When you see these red characters, it means that these prices are not transaction prices, they are for reference only. We will not accept the payment if you pay directly without getting a quote from us.
How to get a price and buy this product?
Method A: You can send a message, then we will contact you. After we update the latest price, then you can make an order.
Method B: You can add this product into the cart and complete the order without paying. Then we will contact you and you can make payment after we send you a new order with an updated price.
Couldn't load pickup availability
J19C Series Three-Way Electrical Connector
Product Information
| Parameter | Details |
|---|---|
| Product Series | J19C Series Three-Way Electrical Connector |
| Type | Modular three-way connector with soft wire termination (middle port) |
| Key Features | Hyperbolic socket design, compact structure, multi-layer stackable |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Electrical | Rated Current | 3 | A |
| Contact Resistance | ≤6 (Pre-life test) ≤8 (Post-life test) |
mΩ | |
| Insulation Resistance | ≥1000 (Standard) ≥150 (Humid) ≥50 (High temp) |
MΩ | |
| Withstand Voltage | 1000 (Standard) 250 (Low pressure) 750 (Humid) |
V | |
| Mechanical | Mechanical Life | 500 | cycles |
| Vibration Resistance | 10Hz–2000Hz, 196m/s² (Sinusoidal) 0.4g²/Hz PSD, 23.1g RMS (Random) |
- | |
| Environmental | Operating Temperature | -55 to +125 | °C |
| Relative Humidity | 90%–95% at 40±2°C | % |
Functional Capabilities
- Three-way modular design with one soft wire termination
- Multi-layer stacking capability for compact system integration
- Reduced internal wiring complexity in modular equipment
- Space-saving solution for miniaturized electronics
- Reliable contact performance in harsh environments
Technical Features
- Hyperbolic socket design for smooth mating and secure connections
- Integrated pin-socket structure for compact size
- High vibration and shock resistance
- Compliance with multiple military and industrial standards
- RoHS-compliant materials (implied by application standards)
Application Areas
- Modular instrumentation systems
- Aerospace and defense electronics
- Industrial automation equipment
- Telecom infrastructure
- High-reliability electronic systems
