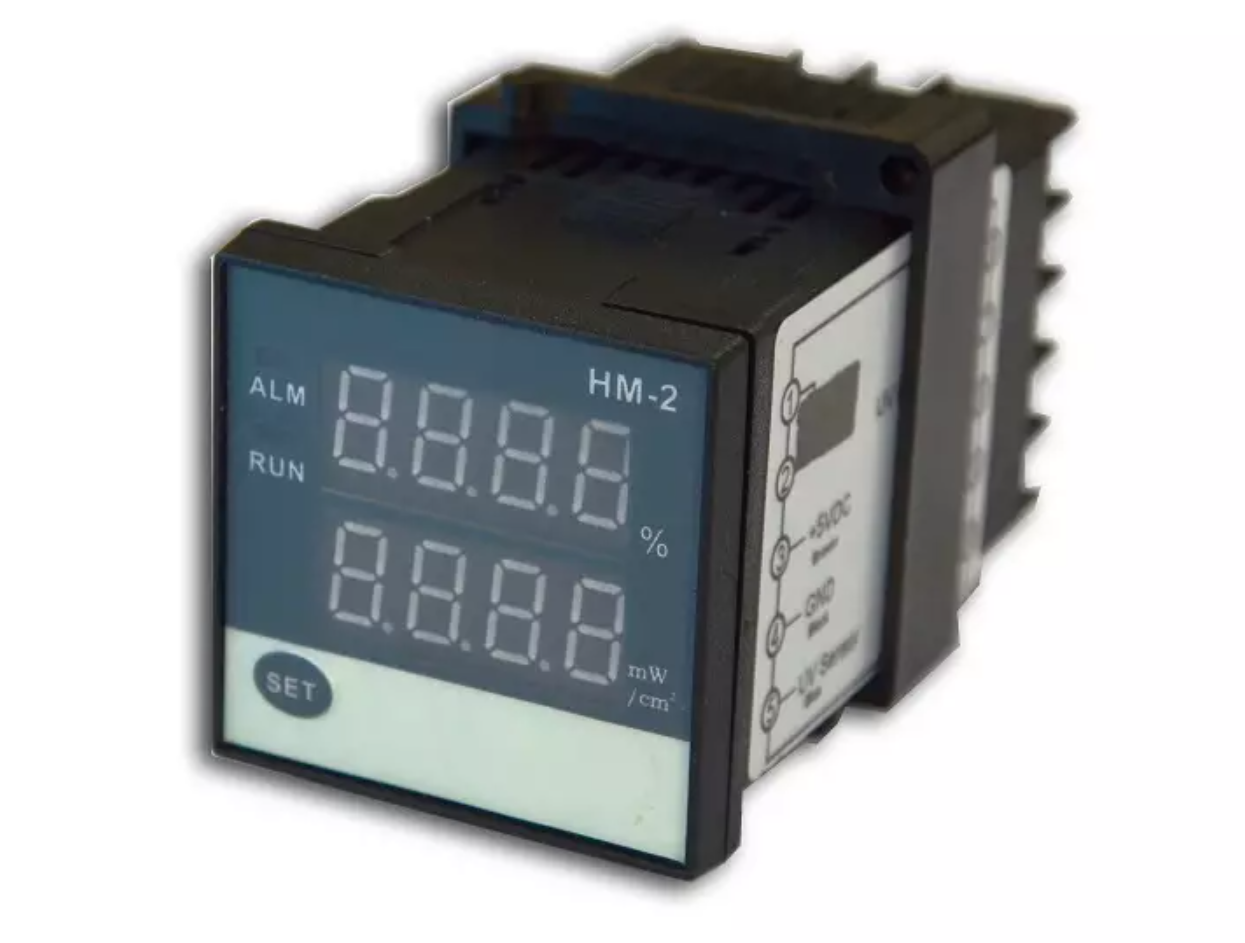

HM-2, Haisen, Monitor
HM-2, Haisen, Monitor
SKU: HM-2-HAISEN-MONITOR
Regular price
$74.00
Regular price
Sale price
$74.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | HM-2 |
| Product Name | UV Monitor for UV Sensor with Relay Contacts and Status Indication |
| Manufacturer | Haisen Technik Co., Ltd. |
| Weight | 320 g |
| Dimensions | 48 x 48 x 84 mm (Main unit) |
| Open Dimensions | 45 x 45 mm (Cutout for panel mounting) |
| Part Number | 71002001 (0-20mW/cm²), 71002002 (0-50mW/cm²), 71002003 (0-100mW/cm²) |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Measuring Performance | Measuring Range | 0-20/0-50/0-100 | mW/cm² | Adjustable per sensor type (specified by part number) |
| Resolution | ±1% or 0.2% | - | Accuracy of measurement | |
| Display Modes | Absolute value, relative %, trend | - | Multi-mode display for real-time monitoring | |
| Environmental Parameters | Operating Temperature | 0-50 | °C | Valid working temperature range |
| Storage Temperature | -10-70 | °C | Safe storage temperature range | |
| Humidity | <80% | - | Non-condensing humidity environment | |
| Electrical Characteristics | Supply Voltage | 85-265 VAC, 50/60Hz | - | Universal mains voltage compatibility |
| Sensor Signal Input | 0-6 V DC | - | Compatible with UV sensor output | |
| Relay Control | 1x UV low alarm contact | - | Single relay for alarm triggering |
Functional Capabilities
- Dual-Mode Monitoring: Continuously measures both absolute UV intensity (mW/cm²) and relative percentage (%) for precise radiation control.
- Multi-Parameter Display: Shows real-time values, relative ratios, and historical trend via digital tube display for intuitive operation.
- Alarm Relay Function: Integrates 1x relay contact to trigger alarms when UV intensity falls below preset thresholds, enabling timely maintenance.
- Wide Sensor Compatibility: Works with different UV sensors to monitor various spectral ranges (UV and visible light) as per application needs.
Technical Features
- High Precision Measurement: Offers resolution up to ±0.2% for accurate detection of subtle UV intensity changes.
- Universal Power Supply: Supports 85-265 VAC input, suitable for global industrial and commercial environments.
- Compact Panel-Mount Design: 48x48mm form factor with 45x45mm cutout, ideal for space-constrained control panels.
- Stable Performance: Operates reliably in 0-50°C temperatures and <80% humidity, ensuring durability in industrial settings.
Application Areas
- UV Lamp Monitoring: Used in UV curing systems, disinfection equipment, and phototherapy devices to ensure optimal lamp performance.
- Industrial Processes: Monitors UV radiation in printing, coating, and adhesive bonding processes for quality control.
- Research & Development: Supports lab applications requiring precise UV intensity measurement for material testing and scientific analysis.
- Environmental Monitoring: Suitable for outdoor UV exposure assessment and climate research equipment.
Disclaimer
This product brief is generated by AI based on information from Haisen Technik’s official website and the provided technical document. While technical specifications (e.g., measuring range, relay control) are extracted directly from the source, detailed installation guidelines, sensor compatibility lists, and extended operational parameters may be incomplete. For accurate and comprehensive information, including certification details and safety instructions, please refer to the official HM-2 datasheet or contact the manufacturer. This summary is for general reference only and does not guarantee product performance under all conditions.
