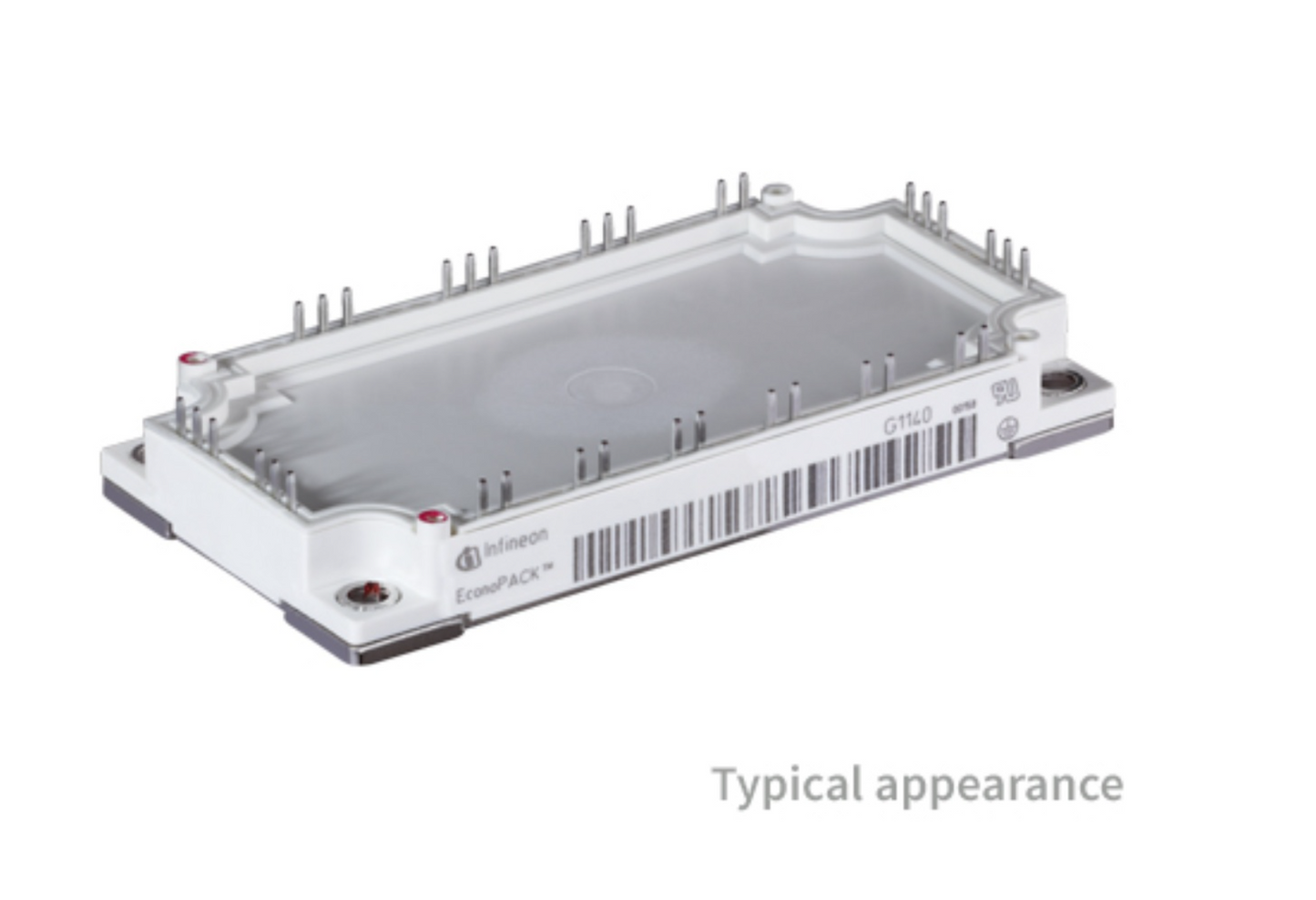

FS150R12KT4, Infineon, IGBT Module with Trench/Fieldstop IGBT4 and EmCon4 Diode
FS150R12KT4, Infineon, IGBT Module with Trench/Fieldstop IGBT4 and EmCon4 Diode
SKU: FS150R12KT4-INFINEON-IGBT-MODULE-WITH-TRENCH-FIELDSTOP-IGBT4-AND-EMCON4-DIODE
Regular price
$85.00
Regular price
Sale price
$85.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | FS150R12KT4 |
| Manufacturer | Infineon |
| Type | IGBT Module with Trench/Fieldstop IGBT4 and EmCon4 Diode |
| Package Type | EconoPACK™3 |
| Weight | 300 g |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Maximum Ratings | Collector-Emitter Voltage (VCES) | 1200 | V |
| Continuous Collector Current (IC) | 150 (Tc = 90°C, Tj = 175°C) | A | |
| Pulse Collector Current (ICP) | 300 (1 ms) | A | |
| Power Dissipation (PTOT) | 750 (Tc = 25°C, Tj = 175°C) | W | |
| Gate-Emitter Voltage (VGES) | ±20 | V | |
| Junction Temperature (Tj) | -40 to +175 | °C | |
| Isolation Voltage (VISO) | 2.5 kV (RMS, 50 Hz, 1 min) | V | |
| Electrical Characteristics | Collector-Emitter Saturation Voltage (VCE(sat)) | 1.75 - 2.20 (Typical range depending on Tj) | V |
| Gate Threshold Voltage (VGE(th)) | 5.2 - 6.4 | V | |
| Input Capacitance (Cies) | 9.35 | nF | |
| Switching Time (ton) | 0.115 - 0.135 (Typical range depending on Tj) | µs | |
| Thermal Resistance (Rth(j-c)) | 0.20 (IGBT), 0.375 (Diode) | K/W | |
| Forward Voltage (VF) | 1.65 - 2.15 (Typical range depending on Tj) | V | |
Functional Capabilities
- Integrated IGBT and EmCon4 diode in a single module
- Can operate in both inverter and braking chopper applications
Technical Features
- Low saturation voltage (VCE(sat) = 1.75 V Typ. at certain conditions) for reduced power losses
- Trench/Fieldstop IGBT4 technology for high - speed switching
- EmCon4 diode with soft - recovery characteristics to reduce switching stress
- Low thermal resistance for efficient heat dissipation
Disclaimer
This product brief is generated by AI based on the provided documentation. For precise technical details, please refer to the official datasheet of the FS150R12KT4 IGBT module. The information presented here is for general reference only and may not cover all specifications or updates.
