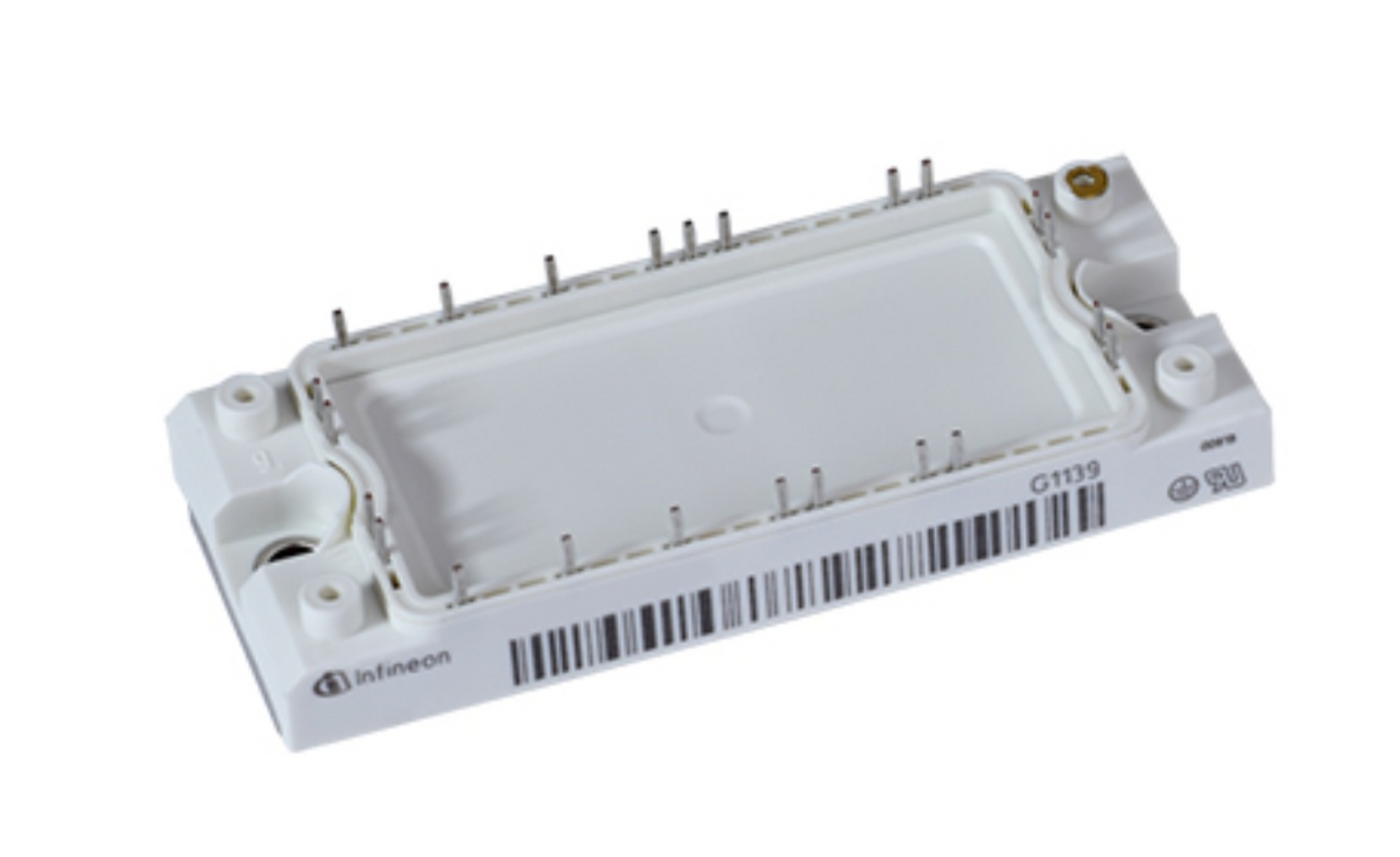

FP40R12KT3, Infineon, IGBT Module with Freewheeling Diode (Half-Bridge)
FP40R12KT3, Infineon, IGBT Module with Freewheeling Diode (Half-Bridge)
SKU: FP40R12KT3-INFINEON-IGBT-MODULE-WITH-FREEWHEELING-DIODE-HALF-BRIDGE
Regular price
$49.00
Regular price
Sale price
$49.00
Unit price
per
Couldn't load pickup availability
FP40R12KT3 IGBT Module
Product Information
| Parameter | Details |
|---|---|
| Product Model | FP40R12KT3 |
| Manufacturer | Infineon |
| Type | IGBT Module with Freewheeling Diode (Half-Bridge) |
| Package | Insulated Type with Copper Baseplate |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Maximum Ratings | Collector Current (IC) | 40 (DC, TC=80°C) 55 (DC, TC=25°C) |
A |
| Collector-Emitter Voltage (VCES) | 1200 | V | |
| Gate-Emitter Voltage (VGES) | ±20 | V | |
| Maximum Junction Temperature (Tjmax) | 150 | °C | |
| Total Power Dissipation (Ptot) | 210 | W | |
| Electrical Characteristics | VCE(sat) (IGBT) | 1.80 (Typ, Tj=25°C) 2.30 (Max, Tj=25°C) |
V |
| VGE(th) (IGBT) | 5.0 (Min) 6.5 (Max) |
V | |
| Gate Charge (QG) | 0.33 | μC | |
| Turn-On Delay Time (td(on)) | 0.09 (Typ, Tj=25°C) | μs | |
| Turn-Off Delay Time (td(off)) | 0.42 (Typ, Tj=25°C) | μs | |
| Thermal Resistance | Junction-to-Case (Rth(j-c)) | 0.60 (IGBT) 0.95 (Diode) |
K/W |
| Reverse Recovery Charge (Qrr) | 4.40 (Typ, Tj=25°C) | μC | |
| Mechanical | Weight | 180 | g |
| Mounting Torque | M5 Screw: 3.00-6.00 | N·m |
Functional Capabilities
- High-power switching up to 40A continuous current
- Integrated freewheeling diode for inductive load protection
- Built-in NTC thermistor for thermal monitoring
- Insulated baseplate for safe operation in high-voltage systems
- Low switching losses for efficient energy conversion
Technical Features
- 600V/1200V voltage ratings
- Copper baseplate for superior thermal conductivity
- Al2O3 insulation for high dielectric strength
- Low internal gate resistance (6.0 Ω)
- Short-circuit withstand capability (160A for 10μs)
- Creepage distance: 10.0mm (terminal to heatsink)
Application Areas
- AC motor drives
- Power supplies
- Inverters
- Renewable energy systems
- Industrial automation
Disclaimer
This product brief is generated by AI based on the provided datasheet. Infineon assumes no liability for inaccuracies in this summary. For official specifications, contact Infineon or refer to the latest datasheet. This product is not intended for life-critical applications. Always verify compatibility with your system design.
