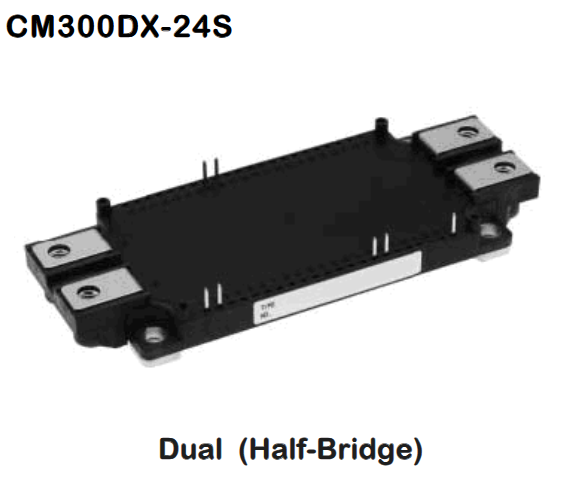

CM300DX-24S, Mitsubishi, Dual Half - Bridge IGBT Module
CM300DX-24S, Mitsubishi, Dual Half - Bridge IGBT Module
SKU: CM300DX-24S-MITSUBISHI-DUAL-HALF-BRIDGE-IGBT-MODULE
Regular price
$83.00
Regular price
Sale price
$83.00
Unit price
per
Couldn't load pickup availability
CM300DX - 24S IGBT Module
Product Information
| Parameter | Details |
|---|---|
| Product Model | CM300DX - 24S |
| Manufacturer | Mitsubishi Electric Corporation |
| Type | Dual Half - Bridge IGBT Module |
| Package | Insulated Type with Copper Base Plate |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Maximum Ratings | Collector Current (IC) | 300 (DC), 600 (Pulse) | A |
| Collector - Emitter Voltage (VCES) | 1200 | V | |
| Gate - Emitter Voltage (VGES) | ±20 | V | |
| Maximum Junction Temperature (Tjmax) | 175 | °C | |
| Total Power Dissipation (Ptot) | 2270 | W | |
| Electrical Characteristics | VCE(sat) (Terminal at Tj=25°C) | 1.80 - 2.25 | V |
| VCE(sat) (Chip at Tj=150°C) | 1.95 | V | |
| Gate Charge (QG) | 700 | nC | |
| Turn - on Delay Time (td(on)) | 800 | ns | |
| Turn - off Delay Time (td(off)) | 600 | ns | |
| Thermal Resistance | Junction - to - Case (Rth(j - c)) | 0.066 (IGBT), 0.12 (Diode) | K/W |
| Reverse Recovery Charge (Qrr) | 16 | μC | |
| Mechanical | Weight | 350 | g |
| Mounting Torque (M6 Screw) | 3.5 - 4.5 | N·m |
Functional Capabilities
- High - power switching up to 300A continuous current
- Insulated baseplate for safe operation in high - voltage systems
- Integrated freewheeling diodes for inductive load protection
- Built - in NTC thermistor for thermal monitoring
- Compliant with global safety standards
Technical Features
- 6th Generation NX Series technology
- Copper base plate for superior thermal conductivity
- Tin - plated terminals for reliable connections
- Low on - state resistance (<0.9 mΩ)
- High isolation voltage (2500V RMS)
- Flat base design for easy heat sink mounting
Application Areas
- AC Motor Drives
- Motion Control Systems
- Industrial Power Supplies
- Servo Amplifiers
- Renewable Energy Inverters
Disclaimer
This product brief is generated by AI based on the provided datasheet. Mitsubishi Electric Corporation assumes no liability for inaccuracies in this summary. For official specifications, contact Mitsubishi or refer to the latest datasheet. This product is not intended for life - critical applications. Always verify compatibility with your system design.
