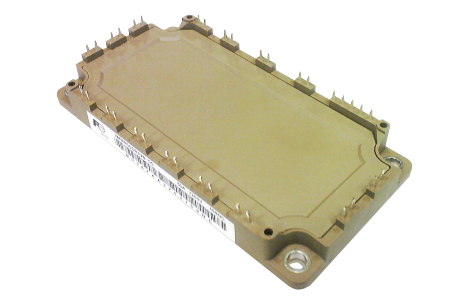

7MBR35VB120-50, Fuji, IGBT Module (V series)
7MBR35VB120-50, Fuji, IGBT Module (V series)
SKU: 7MBR35VB120-50-FUJI-IGBT-MODULE
Regular price
$50.00
Regular price
Sale price
$50.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | 7MBR35VB120-50 |
| Manufacturer | Fuji Electric |
| Type | IGBT Module (V series) |
| Package Type | P.C.Board Mount Module |
| Weight | 300 g (Typical) |
| Package Dimensions | 110±0.3 mm (Length) × 99.6+0.3 mm (Width) × 19.05 mm (Height) |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Maximum Ratings | Collector-Emitter Voltage (VCES) | 1200 | V |
| Gate-Emitter Voltage (VGES) | ±20 | V | |
| Continuous Collector Current (IC) | 35 (Tc=100°C) | A | |
| Pulse Collector Current (ICP) | 70 (1ms, Tc=80°C) | A | |
| Power Dissipation (PC) | 210 (Inverter) | W | |
| Junction Temperature (Tj) | -40 to +175 | °C | |
| Isolation Voltage (Viso) | 2500 | VAC | |
| Mounting Torque | 2.5-3.5 | Nm | |
| Surge Current (IFSM) | 260 (10ms, Tj=150°C) | A | |
| Electrical Characteristics | Collector-Emitter Saturation Voltage (VCE(sat)) | 2.20 (Typical, Tj=25°C) | V |
| Input Capacitance (Cies) | 2.9 (Typical) | nF | |
| Switching Time (ton) | 0.39 (Typical, Tj=125°C) | μs | |
| Reverse Recovery Time (trr) | ≤0.35 | μs | |
| Thermal Resistance (Rth(j-c)) | 0.72 (Max, Inverter IGBT) | °C/W | |
| Forward Voltage (VF) | 1.70 (Typical, Tj=25°C) | V | |
| Gate Threshold Voltage (VGE(th)) | 6.0-7.0 | V |
Functional Capabilities
- Integrated converter diode bridge and dynamic brake circuit
- Built-in temperature sensor
- RoHS compliant
Technical Features
- Low saturation voltage (VCE(sat) = 2.20 V Typ.)
- Compact surface-mount package
- Optimized switching performance
- High-temperature operation capability (Tj = 175°C Max)
Application Areas
- Motor drive inverters
- AC/DC servo drives
- Uninterruptible Power Supplies (UPS)
- Industrial machinery
Disclaimer
This product brief is generated by AI based on the provided documentation. For precise technical details, please refer to the official Fuji Electric datasheet. The information presented here is for general reference only and may not cover all specifications or updates.
