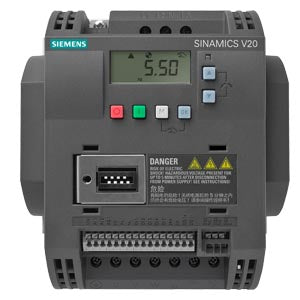

6SL3210-5BE13-7UV0, Siemens, Converter
6SL3210-5BE13-7UV0, Siemens, Converter
SKU: 6SL3210-5BE13-7UV0-SIEMENS-CONVERTER
Regular price
$134.00
Regular price
Sale price
$134.00
Unit price
per
Couldn't load pickup availability
Product Information
- Product Name: SINAMICS V20 Basic Frequency Converter
- Model: 6SL3210 - 5BE13 - 7UV0
- Product Description: 3 - phase AC input of 380 - 480V, rated power of 0.37kW, supports 150% overload for 60 seconds, no built - in filter, equipped with 4 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output, supports USS/Modbus RTU communication, protection class IP20/UL open, dimensions 90×150×145.5mm (width×height×depth)
- Product Lifecycle: PM400: Product is being phased out (since February 10, 2025), successor model is 6SL3210 - 5BE13 - 7UV1 (with integrated braking unit)
- Country of Origin: China
- Net Weight: 0.930 kg
- Package Dimensions: 180×225×120 mm
- Estimated Delivery Time: 5 working days
Key Specifications
| Parameter Category | Parameter Details |
|---|---|
| Input | Phase: 3 - phase AC Voltage: 380–480V (-15%/+10%) Frequency: 47–63 Hz |
| Output | Phase: 3 - phase AC Rated voltage: 400V (IEC)/480V (NEC) Rated power: 0.37kW (LO/HO) Rated current: 1.30A (LO/HO/IN) Output frequency: 0–550 Hz |
| Overload Capacity | - Low overload (LO): 110% of rated current for 60 seconds, cycle of 300 seconds - High overload (HO): 150% of rated current for 60 seconds, cycle of 300 seconds |
| Efficiency | 0.98 (Typical) |
| Communication | Supports USS, Modbus RTU protocols |
| Input/Output Interfaces | Digital inputs: 4 channels Digital outputs: 1 relay change - over contact + 1 transistor output Analog inputs: 2 channels (can also serve as additional digital inputs) Analog output: 1 channel |
| Cooling Method | Convection cooling |
| Installation Altitude | ≤1000 m |
| Ambient Temperature | Operation: -10°C to 60°C (derating required above 40°C) Storage: -40°C to 70°C |
| Relative Humidity | Maximum 95% during operation (no condensation) |
| Motor Cable Length | Shielded cable: ≤10 m Unshielded cable: ≤50 m |
| Installation Method | Wall - mounted/side - by - side installation |
| Protection Class | IP20 (IEC)/UL open |
| Dimensions (W×H×D) | 90 mm × 150 mm × 145.5 mm |
| Frame Size | FSA |
Functional Capabilities
- Supports basic motor speed regulation and control functions.
- Equipped with USS and Modbus RTU communication protocols for remote monitoring and control.
- Provides 4 digital inputs, 2 digital outputs, 2 analog inputs, and 1 analog output for easy connection with external devices.
Technical Features
- Uses convection cooling, eliminating the need for additional cooling equipment.
- Has an overload capacity of 150% for 60 seconds, suitable for different load requirements.
- With an efficiency of up to 0.98 (Typical), it has good energy - saving effects.
Application Areas
Note: The application areas are not specified in the document, so this section is omitted due to missing information.
