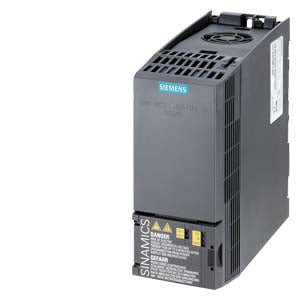

6SL3210-1KE11-8UF2, Siemens, Converter
6SL3210-1KE11-8UF2, Siemens, Converter
SKU: 6SL3210-1KE11-8UF2-SIEMENS-CONVERTER
Regular price
$303.00
Regular price
Sale price
$303.00
Unit price
per
Couldn't load pickup availability
Product Information
- Product Name: SINAMICS G120C Frequency Converter
- Model: 6SL3210-1KE11-8UF2
- Product Description: 3-phase AC input (380–480V, +10%/-20%), supports low overload (0.55kW, 150% load for 3s, 110% load for 57s) and high overload (0.37kW, 200% load for 3s, 150% load for 57s), unfiltered, with 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output, and 1 motor temperature sensor interface. Integrated PROFINET/PROFINET-PN communication, protection class IP20/UL open, frame size FSAA, dimensions 173×73×160mm (H×W×D).
- Product Lifecycle: PM300: Active Product
- Country of Origin: Great Britain
- Net Weight: 1.200 kg (mall info) / 1.40 kg (data sheet, potential packaging difference)
- Package Dimensions: 270×225×85 mm
- Estimated Dispatch Time: 3 working days
Key Specifications
| Parameter Category | Parameter Details |
|---|---|
| Input | Phase: 3-phase AC Voltage: 380–480V (+10%/-20%) Frequency: 47–63 Hz |
| Output | Phase: 3-phase AC Rated voltage: 400V (IEC)/480V (NEC) Rated power (LO): 0.55kW (1.70A) Rated power (HO): 0.37kW (1.30A) Output frequency: 0–240Hz (vector control), 0–550Hz (V/f control) |
| Overload Capacity | - Low overload (LO): 150% of IL for 3s, 110% of IL for 57s, 300s cycle - High overload (HO): 200% of IH for 3s, 150% of IH for 57s, 300s cycle |
| Efficiency | 0.97 (Typical) |
| Communication | PROFINET, EtherNet/IP |
| I/O Interfaces | Digital inputs: 6 channels Digital outputs: 1 relay change-over contact Analog input: 1 channel (10-bit differential) Analog output: 1 channel (non-isolated) Motor temp sensor: 1 channel (PTC/KTY/Thermo-Click, ±5°C accuracy) |
| Cooling & Installation | Cooling: Integrated fan air cooling Altitude: ≤1000m Operation temp: -10°C to 40°C Storage temp: -25°C to 55°C Relative humidity: Max 95% (no condensation at 40°C) |
| Mechanical Specs | Protection class: IP20/UL open Frame size: FSAA Dimensions (H×W×D): 173mm×73mm×160mm Conductor cross-section: 1.00–2.50mm² (AWG18–AWG14) for input/output |
Functional Capabilities
- Supports control techniques: V/f linear/square-law, V/f with flux current control (FCC), ECO mode, sensorless vector control.
- Integrated Safe Torque Off (STO) for safety compliance.
- Motor temperature monitoring via PTC/KTY interface for real-time protection.
- PROFINET communication for industrial Ethernet connectivity.
Technical Features
- Overload Performance: Supports 200% instantaneous overload (3s) for high-dynamic loads.
- Cooling Design: Integrated fan for efficient heat dissipation in compact spaces.
- Interface Compatibility: 6 digital inputs and flexible analog interfaces for easy connection to PLCs and sensors.
- Precision & Efficiency: 10-bit analog input resolution, IE2 efficiency class for energy savings.
Application Areas
Note: The application areas are not specified in the document, so this section is omitted due to missing information.
Disclaimer
This product introduction is generated by artificial intelligence for reference only. The content is compiled based on publicly available information and may contain omissions or errors. For specific technical parameters, scope of application, and compliance requirements, please refer to the official documentation or product manual published by Siemens. For accurate information or professional technical support, please contact the Siemens customer service team.
