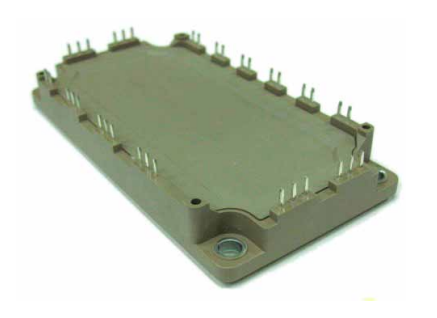

6MBI150VB-120-50, Fuji, IGBT Module (V series)
6MBI150VB-120-50, Fuji, IGBT Module (V series)
SKU: 6MBI150VB-120-50-FUJI-IGBT-MODULE-V-SERIES
Regular price
$81.00
Regular price
Sale price
$81.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | 6MBI150VB-120-50 |
| Manufacturer | Fuji Electric |
| Type | IGBT Module (V series) |
| Package Type | 6-in-1 P.C.Board Mount Module |
| Weight | Not specified in documentation |
| Package Dimensions | Not specified in documentation |
Key Specifications
| Category | Parameter | Value | Unit |
|---|---|---|---|
| Maximum Ratings | Collector-Emitter Voltage (VCES) | 1200 | V |
| Gate-Emitter Voltage (VGES) | ±20 | V | |
| Continuous Collector Current (IC) | 150 (Tc=100°C) | A | |
| Pulse Collector Current (ICP) | 300 (1ms, Tc=25°C) | A | |
| Power Dissipation (PC) | 750 | W | |
| Junction Temperature (Tj) | -40 to +175 | °C | |
| Isolation Voltage (Viso) | 2500 | VAC | |
| Electrical Characteristics | Threshold Voltage (VGE(th)) | 6.0-7.0 | V |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.50 (Typical, Tj=25°C) | V | |
| Input Capacitance (Cies) | 13.7 | nF | |
| Switching Time (ton) | 0.39 (Typical, Tj=125°C) | μs | |
| Reverse Recovery Time (trr) | 0.15 | μs | |
| Thermal Resistance (Rth(j-c)) | 0.195 (IGBT) | °C/W | |
| Forward Voltage (VF) | 1.70 (Typical, Tj=25°C) | V |
Functional Capabilities
- Integrated 6-in-1 power module with IGBTs and diodes
- Built-in overvoltage and overcurrent protection
- Low inductance design for high-frequency operation
Technical Features
- Low saturation voltage (VCE(sat) = 2.50 V Typ.)
- Compact surface-mount package
- Optimized switching performance for reduced losses
- High-temperature operation capability
Application Areas
- Motor drive inverters
- AC/DC servo drives
- Uninterruptible Power Supplies (UPS)
- Industrial machinery (e.g., welding machines)
