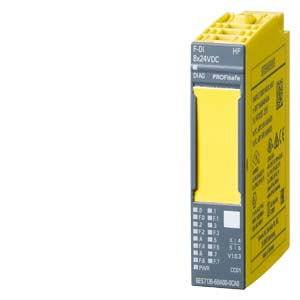

6ES7136-6BA00-0CA0, Siemens, PLC
6ES7136-6BA00-0CA0, Siemens, PLC
SKU: 6ES7136-6BA00-0CA0-SIEMENS-PLC
Regular price
$227.00
Regular price
Sale price
$227.00
Unit price
per
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | 6ES7136-6BA00-0CA0 |
| Product Description | SIMATIC DP, Electronics module for ET 200SP, F-DI 8x 24 V DC HF, 15 mm width, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508) |
| Product Family | Digital F-input modules |
| Product Lifecycle | PM400: Announcement of product phase-out (Phase-out since: 01.10.2024) |
| Successor Model | 6ES7136-6BA01-0CA0 |
| Net Weight | 0.061 kg |
| Packaging Dimensions | 6.90 x 7.50 x 3.20 cm |
| Country of Origin | Germany |
Key Specifications
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Electrical Parameters | Input Voltage | 24 V DC | V | Rated input voltage |
| Number of Channels | 8 | - | Total digital input channels | |
| Channel Type | DC | - | Input signal type | |
| Physical Specifications | Module Width | 15 | mm | Width for space-efficient installation |
| Mounting Type | For ET 200SP | - | Compatibility with Siemens ET 200SP system | |
| Safety Ratings | Performance Level (PL) | E (ISO 13849-1) | - | Highest safety performance level |
| Safety Integrity Level (SIL) | 3 (IEC 61508) | - | Highest safety integrity level | |
| Compliance | RoHS Compliance | Yes (Since 08.08.2013) | - | Conforms to Restriction of Hazardous Substances directive |
Functional Capabilities
- Safety-Critical Inputs: Provides 8 isolated 24 V DC digital input channels for safety-related applications requiring high reliability.
- Advanced Safety Standards: Meets PL E (ISO 13849-1) and SIL 3 (IEC 61508), ensuring compliance with strict industrial safety requirements.
- Compact Design: 15 mm width allows space-efficient installation in modular automation systems like ET 200SP.
- High-Frequency Operation: Supports high-frequency signal processing for precise input detection in dynamic environments.
Technical Features
- Fail-Safe Design: Ensures safe state maintenance during faults, critical for emergency stop and safety interlock systems.
- Modular Compatibility: Designed for seamless integration with Siemens ET 200SP distributed I/O system, enabling flexible system expansion.
- Robust Construction: Built for industrial environments with reliable performance in harsh conditions (no specific environmental specs listed, but implied by safety ratings).
Application Areas
- Industrial Automation: Used in machinery, production lines, and control systems requiring safety-certified signal input.
- Safety-Critical Systems: Ideal for emergency stop circuits, safety interlocks, and hazard detection in manufacturing plants.
- Process Control: Integrates with distributed I/O systems for real-time monitoring and safety-oriented data acquisition.
- Machine Tools: Supports precision input sensing in CNC machines and automated equipment with strict safety requirements.
Disclaimer
This product brief is generated by AI based on information from the Siemens Industrial Mall webpage. While the technical specifications and safety ratings are derived directly from the product data, details such as environmental operating conditions, detailed diagnostic functions, and extended compatibility may be incomplete. The product is marked as phase-out; please refer to the successor model (6ES7136-6BA01-0CA0) for current specifications. Always consult the official Siemens datasheet for precise technical documentation and compliance information. This summary is for general reference only and does not guarantee product availability or performance.
