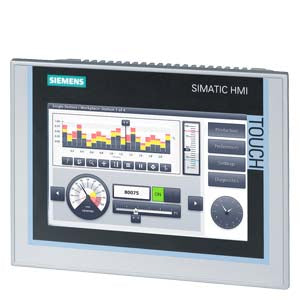

6AV2124-0GC01-0AX0, Siemens, SIMATIC HMI TP700 Comfort Panel
6AV2124-0GC01-0AX0, Siemens, SIMATIC HMI TP700 Comfort Panel
SKU: 6AV2124-0GC01-0AX0-SIEMENS-SIMATIC-HMI-TP700-COMFORT-PANEL
When you see these red characters, it means that these prices are not transaction prices, they are for reference only. We will not accept the payment if you pay directly without getting a quote from us.
How to get a price and buy this product?
Method A: You can send a message, then we will contact you. After we update the latest price, then you can make an order.
Method B: You can add this product into the cart and complete the order without paying. Then we will contact you and you can make payment after we send you a new order with an updated price.
Couldn't load pickup availability
Product Information
- Product Name: SIMATIC HMI TP700 Comfort Panel
- Model: 6AV2124-0GC01-0AX0
- Product Description: Touch-operated, 7-inch widescreen TFT display (16 million colors), equipped with PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, running Windows CE 6.0, configurable via WinCC Comfort V11.
- Product Lifecycle: PM300: Active Product
- Country of Origin: Germany
- Net Weight: 1.598 kg
- Package Dimensions: 19.70×26.60×11.80 cm
- Estimated Dispatch Time: 1 working day
Key Specifications
| Parameter Category | Parameter Details |
|---|---|
| Display | Size: 7-inch widescreen TFT Color: 16 million colors Operation: Touch-sensitive |
| Communication Interfaces | PROFINET interface, MPI/PROFIBUS DP interface |
| Configuration Memory | 12 MB |
| Operating System | Windows CE 6.0 |
| Compatible Software | Configurable via WinCC Comfort V11 |
| Physical Specs | Net weight: 1.598 kg Package dimensions: 19.70×26.60×11.80 cm |
| Delivery Info | Estimated dispatch time: 1 working day |
Functional Capabilities
- Enables touch-based graphical human-machine interaction for industrial device visualization and control.
- Integrates PROFINET, MPI/PROFIBUS DP interfaces for communication with various industrial controllers.
- Provides 12 MB configuration memory to store user-defined interfaces and control logic.
- Based on Windows CE 6.0, compatible with WinCC Comfort V11 for interface design and function configuration.
Technical Features
- Display Performance: 7-inch widescreen TFT display with 16 million colors for clear and detailed visuals.
- Interface Compatibility: Supports both PROFINET (industrial Ethernet) and MPI/PROFIBUS DP (legacy bus) for integration into different industrial systems.
- Software Ecosystem: Programmable via Siemens WinCC Comfort V11, enabling development of complex HMI interfaces.
- System Stability: Runs on Windows CE 6.0, suitable for stable long-term operation in industrial environments.
Application Areas
Note: The application areas are not specified in the document, so this section is omitted due to missing information.
Disclaimer
This product introduction is generated by artificial intelligence for reference only. The content is compiled based on publicly available information and may contain omissions or errors. For specific technical parameters, scope of application, and compliance requirements, please refer to the official documentation or product manual published by Siemens. For accurate information or professional technical support, please contact the Siemens customer service team.
