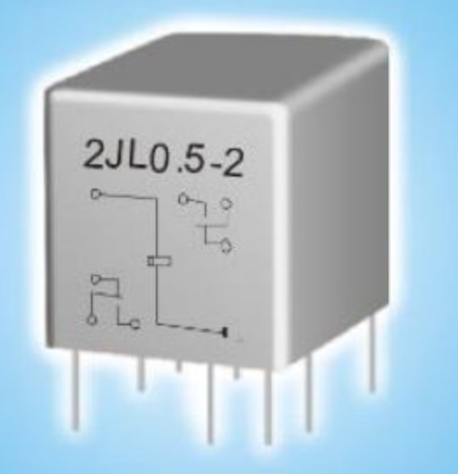

2JL0.5, China, Miniature Sensitive Electromagnetic Relay
2JL0.5, China, Miniature Sensitive Electromagnetic Relay
SKU: 2JL0-5-CHINA-MINIATURE-SENSITIVE-ELECTROMAGNETIC-RELAY
When you see these red characters, it means that these prices are not transaction prices, they are for reference only. We will not accept the payment if you pay directly without getting a quote from us.
How to get a price and buy this product?
Method A: You can send a message, then we will contact you. After we update the latest price, then you can make an order.
Method B: You can add this product into the cart and complete the order without paying. Then we will contact you and you can make payment after we send you a new order with an updated price.
Couldn't load pickup availability
Product Information
| Item | Details |
|---|---|
| Product Model | 2JL0.5-2 |
| Type | Miniature Sensitive Electromagnetic Relay |
| Compliance Standards | GJB65B general specification, GJB65/12-2011 single specification |
| Weight | ≤4 g |
| Quality Grades | Ⓙ, G, G+, J/K |
Key Specifications
Environmental Characteristics
| Parameter | Specification (J/K Grade) | Unit | Description |
|---|---|---|---|
| Temperature Range | -55~85 (Standard), -55~105, -65~125 (Optional) | °C | Operating temperature ranges for different quality grades |
| Low Pressure | 1, 0.27~0.013, 0.67~0.13 | kPa | Pressure resistance under different conditions |
| Sinusoidal Vibration | 10~2000 Hz, 147~196 m/s² | - | Vibration tolerance (frequency and acceleration) |
| Shock | 490~735 m/s² | - | Shock resistance |
Electrical & Contact Characteristics
| Category | Parameter | Value | Unit | Description |
|---|---|---|---|---|
| Coil Parameters | Coil Voltage (DC) | 5, 6, 9, 12, 15, 20 | V | Rated coil voltages |
| Coil Resistance (25℃) | 300, 600, 1700, 2900 (±10%) | Ω | Coil resistance at 25℃ | |
| Operating Voltage (Max) | 3.4~12.0 (dependent on voltage) | V | Maximum operating voltage | |
| Release Voltage (Min) | 0.2~1.5 (dependent on voltage) | V | Minimum release voltage | |
| Contact Parameters | Contact Arrangement | DPDT | - | Double Pole Double Throw configuration |
| Contact Resistance (Initial) | ≤0.05 | Ω | Initial contact resistance | |
| Insulation Resistance | ≥10000 (Normal), ≥100 (High Temp./Humidity) | MΩ | Insulation resistance under different conditions |
Functional Capabilities
- High Sensitivity Design: Directly drivable by TTL signals, enabling seamless integration with low-power control systems.
- Reliable Signal Control: Supports signal transmission, level shifting, and circuit switching in critical automatic control applications.
- Multi-Load Compatibility: Handles resistive, inductive, and motor loads with specified current and voltage ratings.
Technical Features
- Military-Grade Compliance: Meets GJB65B and GJB65/12-2011 standards for aerospace and defense applications.
- Miniature Form Factor: Lightweight design (≤4 g) for space-constrained environments.
- Environmental Robustness: Withstands extreme temperatures, vibration, shock, and low-pressure conditions per quality grade specifications.
Application Areas
- Aerospace & Aviation: Used in avionics and aircraft control systems for reliable signal routing.
- Marine & Naval Systems: Suitable for shipboard automatic control and communication systems.
- Military & Defense: Integrated into weapon systems and tactical equipment requiring rugged performance.
